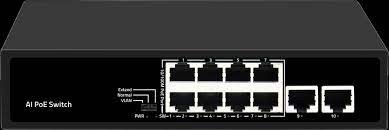

ZX901-AF-82N 10-port 10/100M AI PoE

Product name: 10-port AF PoE switch with 8 PoE ports and 2 uplinks
model: ZX901-AF-82N
Connector type: 10x 10 / 100M copper RJ45 port (8 PoE ports + 2 uplinks)
Internet media: 10BASE-T: Cat3, 4, 5 UTP (≤ 100 m) 100BASE-TX: Cat5 or higher UTP (≤ 100 m)
bandwidth: 2Gbps (non-blocking)
Address database size: 1K
MTBF: 190,000 hours (about 21 years)
Forwarding mode: Store and forward
Network protocol: IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x flow control;
IEEE 802.1af DTE power supply via MDI; IEEE 802.3af
LED display: System: Power; each port: connection, PoE working status
power supply
Power input: AC100-240V 50 / 60Hz; (customized power plugs are used in every country)
PoE port: Port 1-8 supports POE
PoE port power supply: 15.4W per POE port
PoE standard: IEEE 802.3af
LED indicator
Green: Ethernet
Red: power supply
Southern Weekend: On: VLAN, 100 meters
Blinking: VLAN, 250 meters
Off: VLAN is off, 100 meters
Blinking: VLAN is off, 250 meters
working environment: Working temperature: -20 ° ~ 55 ° C; storage temperature: -40 ° ~ 85 ° C;
Operating humidity: 10%~95%, no condensation
prove: CE Mark, commercial; CE / LVD EN60950, RoHS
radiation: CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission distance: Data transmission distance: 100 meters, 250 meters (data rate is 10M when using Cat6)
