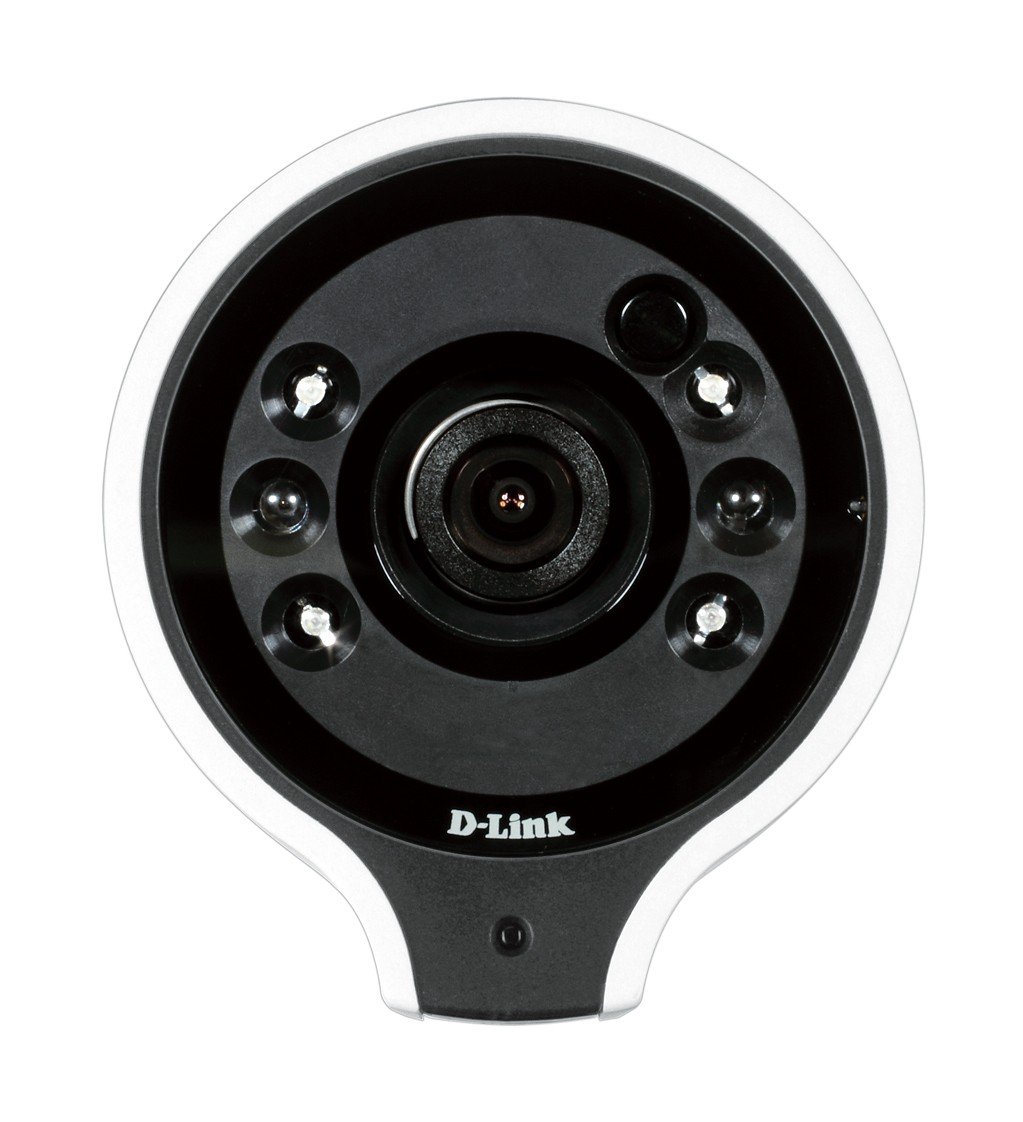

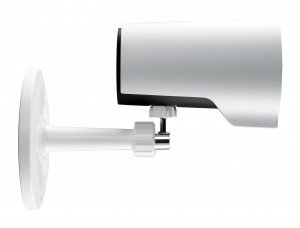

DCS-7000L Wireless AC Day/Night HD Mini Bullet Cloud Camera

Camera Hardware Profile

• 1/4” Megapixel progressive CMOS sensor

• 8 meter IR illumination distance

• Minimum illumination: 0 lux with IR LED on

• Built-in Infrared-Cut Removable (ICR) Filter module

• 10x digital zoom

• Focal length: 2.4 mm

• Aperture: F2.0

• Angle of view:

• (H) 98°

• (V) 52°

• (D) 115°

• Minimum object distance: 200 mm

Image Features

• Configurable image size, quality, frame rate, and bit rate

• Time stamp and text overlays

• Configurable motion detection windows

• Configurable privacy mask zones

• Configurable shutter speed, brightness, saturation, contrast, and sharpness

Video Compression

• Simultaneous H.264/MJPEG format compression

• H.264 multicast streaming

• JPEG for still images

Video Resolution

• 16:9 - 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps recording

• 4:3 - 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps recording

Audio Support • AAC • G.711

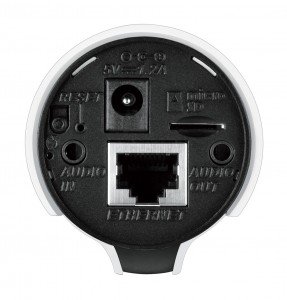

External Device Interfaces

• 802.11a/b/g/n/ac wireless with WEP/WPA/WPA2 support

• 10/100 BASE-TX Fast Ethernet port

• microSD card slot2

• Audio in and out jacks

Network Protocols

• IPv6

• IPv4

• TCP/IP

• UDP

• ICMP

• DHCP client

• NTP client (D-Link)

• DNS client

• DDNS client (D-Link)

• SMTP client

• FTP client

• HTTP / HTTPS

• Samba client

• PPPoE

• UPnP port forwarding

• RTP / RTSP/ RTCP

• IP filtering

• QoS

• CoS

• Multicast

• IGMP

• ONVIF compliant

Wi-Fi Features

• 802.11a/b/g/n/ac wireless with WEP/WPA/WPA2 support

• Operates over 2.4 GHz and 5 GHz frequency bands

• Dual-band 1T1R mode supports a maximum data rate of 433 Mbps (PHY rate) using 80 MHz bandwidth

Security

• Administrator and user group protection

• Password authentication

• HTTP and RTSP authentication

System Requirements for Web Interface

• Browser: Internet Explorer, Firefox, Safari, Chrome

Event Management

• Motion/sound detection

• Event notification and uploading of snapshots/video clips via e-mail or FTP

• Supports multiple SMTP and FTP servers

• Multiple event notifications

• Multiple recording methods for easy backup

Remote Management

• Take snapshots/video clips and save to local hard drive via web browser

• Configuration interface accessible via web browser

Mobile Support

• Supports mydlink Lite/mydlink+ mobile apps for iOS and Android mobile devices

D-ViewCam™ System Requirements

• Operating System: Microsoft Windows 8/7/Vista/XP

• Web Browser: Internet Explorer 7 or higher

• Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

• Remote management/control of up to 32 cameras

• Viewing of up to 32 cameras on one screen

• Scheduled motion triggered, or manual recording options

• Supports all management functions in web interface

Weight

• Without stand: 115 g ± 5% • Stand: 45 g ± 5%

Power

• 5 V DC, 1.2 A through external power adapter

• External Power Adapter Input: 100 to 240 V AC, 50/60 Hz Power Consumption

• 3.5 watts max.

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)

• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 20% to 80% non-condensing

• Storage: 5% to 95% non-condensing

Certifications

• CE

• CE LVD

• FCC class B

• C-Tick
