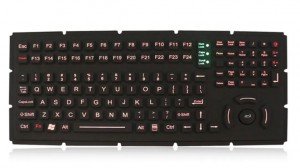

Rugged Keyboard K-TEK-M365HP-KP-FN-BL-ML-OEM

Rugged Keyboard Model: K-TEK-M365HP-KP-FN-BL-ML-OEM

Mechanical Data
Keys  122 Keys (including 3 mouse buttons
Key top style  Protubent retangulat keys with tactile feeling
Key Size  14.0mm x 14.0mm for normal keys
Key travel  1.50mm+0.1mm
Actuation Force  1.5N +0.2N (pressure Point)
Switch Life  more than 5 million of operations
GW 1.20KGs
Electrical Data
Supply Voltage  DC +25C+5%
Current rating  50mAwhen backlight is off, 300mA with backlight on
Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc:
1 CE 101 25 kHz - 10MHz Conducted Emissions, Audio Frequency Currents, Power leads
2 CE 102 10 kHz - 10MHz Conducted Emissions, Radio Frequencu Potentials, Power leads
3 CS 101 25Hz - 250 kHz Conducted Emissions, Power leads
4 CS106 Conducted Susceptibility, Transients, Power Leads
5 CS112 Electrostatic Dsicharge susceptibility
6 CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
7 CS115 Conducted Susceptbility, Bulk Cable injection, Impulse Excitation
8 CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
9 RE101 25kHz Radiated Emissions, Magnetic Field
10 RE102 10kHz Radiated Emissions, Electroc Field
11 RS101 25kHz - 100kHz Radiated Susceptibility, Magnetic Field
12 RS103 10kHz - 40kHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide tempreture, shock, vibration, humidity)
Lifespan  > 5 years

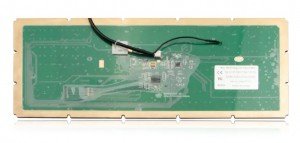

Switch Contact Material  Carbon-on-Gold key switch technology with gold PCB
Interface  PS2, USB available
Cable length  Standard 2.0m, customised length available
OS  All Windows, Linis, Unix, Mac OSX, Vxworks, Android, (U-cos--to be confirmed)
Environmental Adaptability
Operating tempreture  -25C to 60C
Storage tempreture  -40C to 70C
Operating RH  100%
Atmospheric Presure  60-106Kpa
Saline mist  96 hours, IEC 60512-6
Damp heat test at +40C  21 days, IEC 60512-6
Dry heat test at +85C  10 days, IEC 60512-6
Reliability
RoHS compliant, CE andFCC certified, MIL -STD-461G (EMC, EMI, EMS, ESD) and MIL -STD-810F (wide tempreture, shock, salt msit, vibration, fungus, humidity)
Protection level  IP65 dynamic (front panel)
Key Lifespan  >5 million actuations
MTBF  >20000H
MTTR  <30 min
APPLICANTION  Vehicle, aerospace, naval, defense, maritime, radar, console, portable, rugged laptop, UAV ground station etc

  • - SKU: Rugged Keyboard K-TEK-M365HP-KP-FN-BL-ML-OEM
  • - Weight: 0.8 kg
  • - Brand: key-tek
