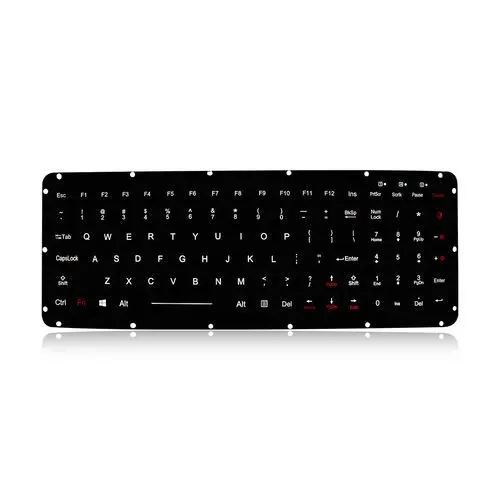

Rugged Keyboard K-TEK-M315KP-FN-MS-BL-NV-151B

Mechanical Data

Keys

102 keys

Key top style

Protubent retangulat keys with tactile feeling

Key Size

12.0mm x 12.0mm for normal keys, 21.8mm x 23.0mm for enter key and 66.7mm x 12.0mm for space bar key

Key travel

1.20mm+0.1mm

Actuation Force

1.2N +0.2N (pressure Point)

Switch Life

more than 5 million of operations

GW

1.0KGs

Electrical Data

Supply Voltage

DC +5V+5%

Current rating

30mAwhen backlight is off, 300mA with backlight on

Note

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc:

1

CE 101 25 kHz - 10MHz Conducted Emissions, Audio Frequency Currents, Power leads

2

CE 102 10 kHz - 10MHz Conducted Emissions, Radio Frequencu Potentials, Power leads

3

CS 101 25Hz - 250 kHz Conducted Emissions, Power leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Dsicharge susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptbility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads

9

RE101 25kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz Radiated Emissions, Electroc Field

11

RS101 25kHz - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40kHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide tempreture, shock, vibration, humidity)

Lifespan

> 5 years

Switch Contact Material

membrance key switch technology

Interface

USB

Cable length

Standard 0.8m, customised length available

OS

All Windows, Linis, Unix, Mac OSX, Vxworks, Android, (U-cos--to be confirmed)

Environmental Adaptability

Operating tempreture

40C to 60C

Storage tempreture

45C to 70C

Humidity

100%

Atmospheric Presure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40C

21 days, IEC 60512-6

Dry heat test at +85C

10 days, IEC 60512-6

Reliability

Note

RoHS compliant, CE andFCC certified, MIL -STD-461G (EMC, EMI, EMS, ESD) and MIL -STD-810F (wide tempreture, shock, salt msit, vibration, fungus, humidity)

Protection level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30 min

APPLICANTION

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialsis centers etc,;

MATERIAL HANDLING

mobile keyboard, data entry, assembly line etc.

INDUSTRIAL

industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing envirnments, warehouses MILTARY: Vehicle, aerospace, naval, defense, maritime, radar, console, portable, rugged laptop, UAV ground station etc
