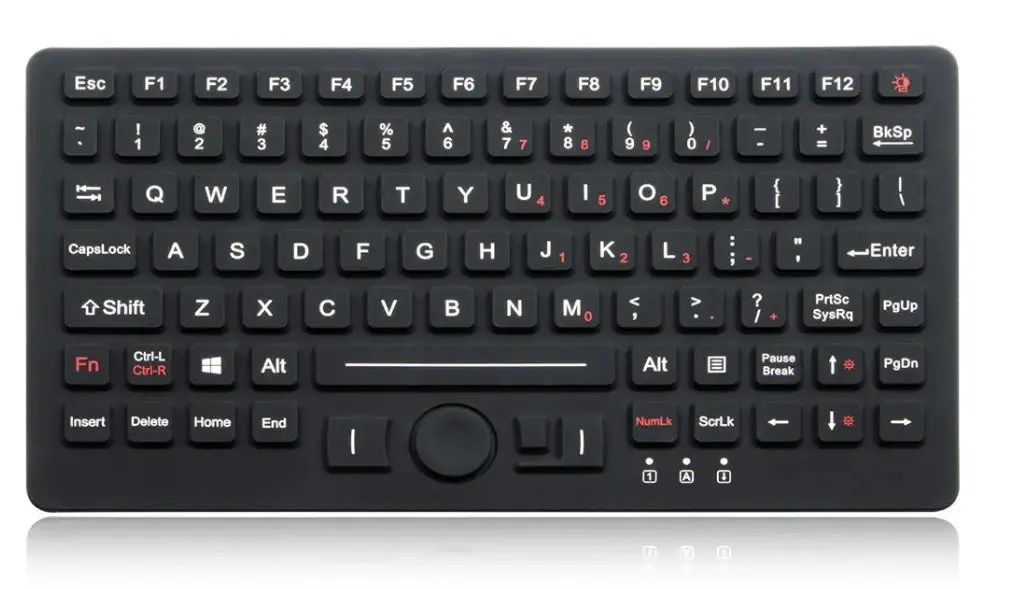

K-TEK-M282-DHP-FN-BL-NV-151B-SS Rugged Keyboard
K-TEKModel K-TEK-M282-DHP-FN-BL-NV-151B-SS
Price on request
Send an enquiry or call for the price and availability.
Specifications
Mechanical Data
- Keys
- 90 keys (including 3 mouse buttons)
- Key top style
- Protubent retangulat keys with tactile feeling
- Key Size
- 13.6mm x 13.6mm for normal keys
- Key travel
- 1.20mm+0.1mm
- Actuation Force
- 1.5N +0.2N (pressure Point)
- Switch Life
- more than 5 million of operations
- GW
- 1.5KGs
Electrical Data
- Supply Voltage
- DC +5V+5%
- Current rating
- 50mAwhen backlight is off, 300mA with backlight on
- Note
- Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc:
- 1
- CE 101 25 kHz - 10MHz Conducted Emissions, Audio Frequency Currents, Power leads
- 2
- CE 102 10 kHz - 10MHz Conducted Emissions, Radio Frequencu Potentials, Power leads
- 3
- CS 101 25Hz - 250 kHz Conducted Emissions, Power leads
- 4
- CS106 Conducted Susceptibility, Transients, Power Leads
- 5
- CS112 Electrostatic Dsicharge susceptibility
- 6
- CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
- 7
- CS115 Conducted Susceptbility, Bulk Cable injection, Impulse Excitation
- 8
- CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
- 9
- RE101 25kHz Radiated Emissions, Magnetic Field
- 10
- RE102 10kHz Radiated Emissions, Electroc Field
- 11
- RS101 25kHz - 100kHz Radiated Susceptibility, Magnetic Field
- 12
- RS103 10kHz - 40kHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide tempreture, shock, vibration, humidity)
- Lifespan
- > 5 years
- Switch Contact Material
- Carbon-on-Gold key switch technology with gold PCB
- Interface
- USB
- Cable length
- Standard 1.5m, customised length available
- OS
- All Windows, Linis, Unix, Mac OSX, Vxworks, Android, (U-cos--to be confirmed)
Environmental Adaptability
- Operating tempreture
- 25C to 60C
- Storage tempreture
- 40C to 70C
- Humidity
- 100%
- Atmospheric Presure
- 60-106Kpa
- Saline mist
- 96 hours, IEC 60512-6
- Damp heat test at +40C
- 21 days, IEC 60512-6
- Dry heat test at +85C
- 10 days, IEC 60512-6
Reliability
- Note
- RoHS compliant, CE andFCC certified, MIL -STD-461G (EMC, EMI, EMS, ESD) and MIL -STD-810F (wide tempreture, shock, salt msit, vibration, fungus, humidity)
- Protection level
- IP65 dynamic (front panel)
- Key Lifespan
- >5 million actuations
- MTBF
- >20000H
- MTTR
- <30 min
- APPLICANTION
- Vehicle, aerospace, naval, defense, maritime, radar, console, portable, rugged laptop, UAV ground station etc
