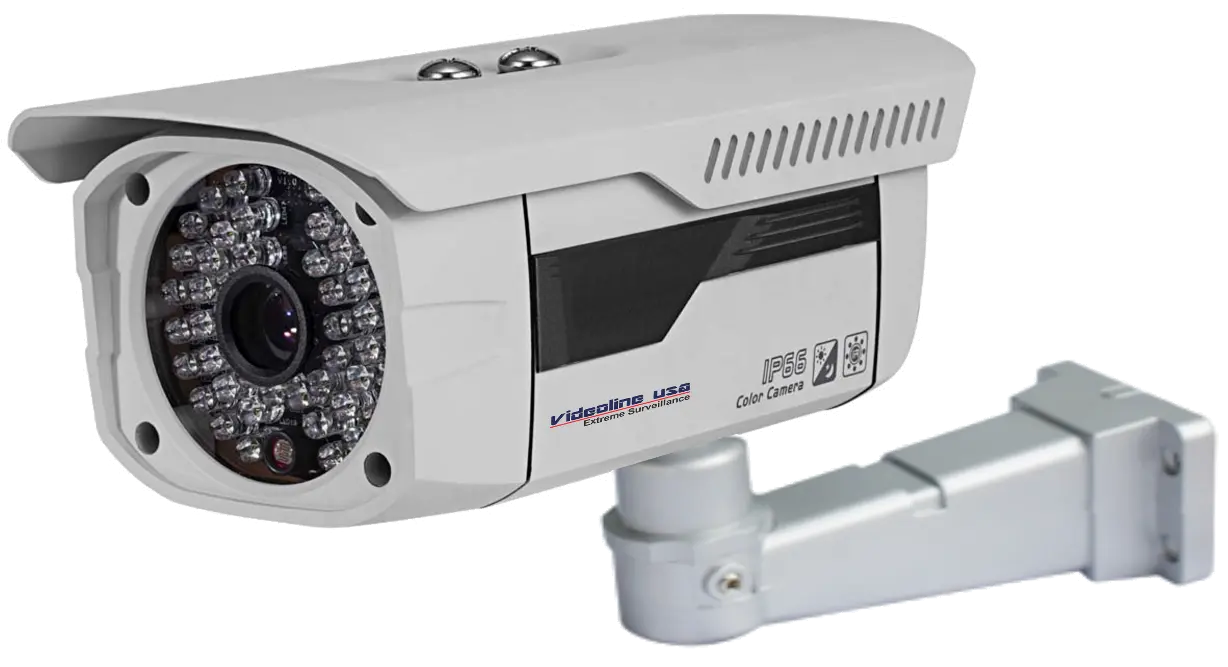

D1 IR Weather proof Network Camera PS1D1-IRW
VideolineModel PS1D1-IRW
Price on request
Send an enquiry or call for the price and availability.
Specifications
Features
- 1/3” SONY Super HAD CCD
- H.264 dual-stream encoding
- 25/30fps @D1/HD1/CIF/QVGA resolution
- Day/Night, 2DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS & Mobile viewer
- 6mm fixed lens (3.6mm,8mm,12mm optional)
- Built-in 2/1 alarm in/out
- Max IR LEDs Length 30m
- Mirco SD memory, IP65, PoE
Operational
- Image Sensor
- 1/3” SONY Super HAD CCD
- Effective Pixels
- 795(H)x596(V) 811(H)x508(V)
- Scanning System
- Progressive
- Electronic Shutter Speed
- Auto/Manual 1/25~1/10000 - Auto/Manual 1/30~1/10000
- Min. Illumination
- 0.1LUX/F1.2,0Lux/F1.2(IR on)
- S/N Ratio
- >50dB
- Video Output
- 1 channel BNC(1.0Vp-p, 75Ω)
- Day/Night
- Auto(Electronic) / Color / B/W
- Backlight Compensation
- BLC
- White Balance
- Auto
- Gain Control
- Auto
- Noise Reduction
- 2D
- Privacy Masking
- Up to 4 areas
- Focal Length
- 6mm (3.6mm,8mm,12mm optional)
- Max Aperture
- F1.8
- Focus Control
- Fixed lens
- Angle of View
- H: 42° (70°/46°/35°)
- Lens Type
- Fixed/ Fixed Iris
- Mount Type
- Board-in Type
Video
- Compression
- H.264 / MJPEG
- Resolution
- D1(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×128) / VGA(640×480)
- Record Speed
- 1~25/30fps at all resolution (main stream) 1~25/30fps at all resolution (sub stream)
- Bit Rate
- 56K ~ 4096Kbps
Audio
- Compression
- G.711a(32Kbps) / AMR(10.2Kbps)
- Interface
- 1/1 channel In/Out
Network
- Ethernet
- RJ-45 (10/100Base-T)
- Protocol
- IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
- ONVIF
- ONVIF Ver. 2.0 conformance
- Max. User Access
- 10 users
- Smart Phone
- iPhone, iPad, Android, Windows Phone
Auxiliary Interface
- Memory Slot
- Micro SD, Max 32GB
- RS485
- 1
- Alarm
- 7/2 channel In/Out
Mechanical
- Dimensions
- 89mm×200.2mm×76mm
- Weight
- 0.5 kg
- Construction
- Alloy shell, 3KV thunder protect, surge protect
- Mounting Plate
- Connection to 4S junction box
- Connector
- Video Output: BNC Connector, Power Input: Tinned Leads
Environmental
- Temperature
- Operating: -25 ̊C to 50 ̊C Storage: -35 ̊C to 60 ̊C
- Relative Humidity Rating
- 0% to 85%, non-condensing IP66
Regulatory
- Emissions
- FCC: Part 15, Class B, CE: EN 55013
- Immunity
- CE: EN50130-4
- Safety
- EU: 73/23/EEC LVD
Electrical
- Input Voltage
- DC12V,PoE(802.3af)
- Input Range
- (±10%)
- Surge Suppression
- 1.5 KW Transient
- Power Consumption
- 5W max
