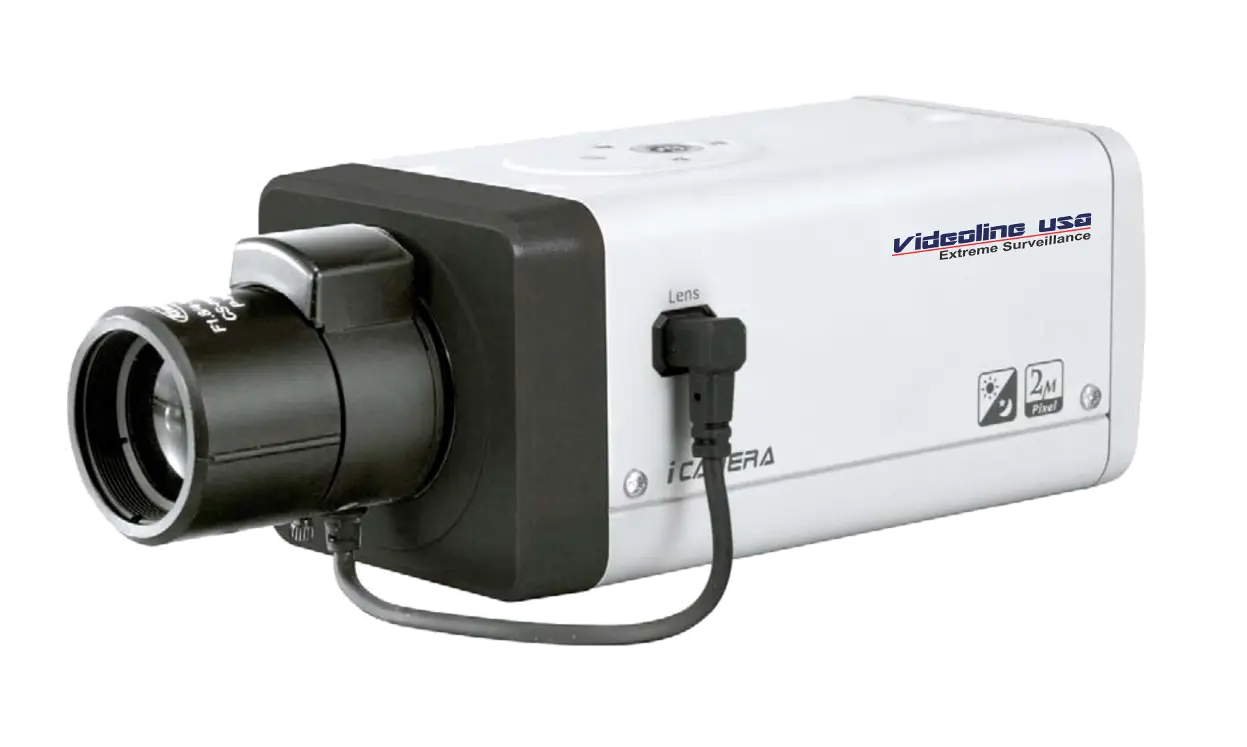

2MP CMOS HD Network Box Camera PN320-BX
VideolineModel PN320-BX
Price on request
Send an enquiry or call for the price and availability.
Specifications
- 1/3” 2Megapixel progressive scan Exmor CMOS
- H.264 & MJPEG dual-stream encoding
- 25/30fps@1080P(1920×1080)
- DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Built-in 1/1 alarm in/out
- PoE, SD memory
General
- Processor
- TI DaVinci Series DSP
- Operating System
- Embedded LINUX
- Resource
- Simultaneous remote monitoring, local recording and remote control
- User Interface
- WEB, CMS(DSS/ PSS), DMSS, NVR
Camera
- Image Sensor
- 1/3” 2Megapixel Exmor CMOS
- Effective Pixels
- 1920(H)x1080(V)
- Scanning System
- Progressive
- Electronic Shutter Speed
- Auto/Manual,1/3~1/10000s Auto/Manual,1/4~1/10000s
- Min. Illumination
- Color: 0. 2LUX/F1.2, B/W: 0.01LUX/F1.2
- S/N Ratio
- >50dB
- Video Output
- 1 channel, BNC(1.0Vp-p, 75Ω)
- Day/Night
- Auto(ICR) / Color / B/W
- Backlight Compensation
- BLC / HLC / DWDR
- White Balance
- Auto
- Gain Control
- Auto/Manual
- Noise Reduction
- 2D
- Privacy Masking
- Up to 4 areas
- Lens Mount
- C/CS
Video
- Video Compression
- H.264/MJPEG
- Image Resolution
- 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480)
- Encoding Speed
- 1.3M (1~15fps)+ D1(1~15fps)
720P(1~25fps)+ D1(1~25fps)
- Bit Rate
- H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
- Snapshot
- Fastest 1fps JPEG capture
- Video Format
- PAL, NTSC
Audio
- Compression
- G.711a / G.711u(64kbps) / PCM(128kbps)
- Interface
- 1/1 channel In/Out
Network
- Ethernet
- RJ-45 (10/100Base-T)
- Network Functions
- HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, ONVIF ver 2.0
- Remote Operation
- Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade
- Max. User Access
- 10 users
- Smart Phone
- iPhone, iPad, Android, Windows Phone
Auxiliary Interface
- Memory Slot
- SD, Max 32GB
- RS485
- 1
- Alarm
- 1/1 channel In/Out
Max. IR Distance
- Power Supply
- DC12V, PoE(802.3af)
- Ingress Protection
- IP66, 4000V thunder, surge and wave protection
- Power Consumption
- Max. 6W
- Operating Environment
- 10°C~+50°C, 10%~90%
- Dimension
- 70mm×149.5mm×63.2 mm
- Weight
- 0.65kg
Ask about this product
The price, availability, or installation for 2MP CMOS HD Network Box Camera PN320-BX. We reply by phone or email.
