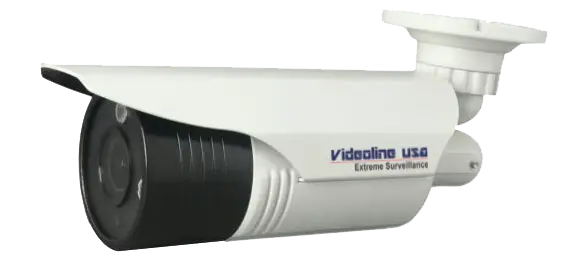

8MP IR Vandal proof Network Camera PX180Z-IRW

Features

• 1/2.5” 8MP Hi3516D OV4689 CMOS sensor
• H.265+, H.265, H.264 & MJPEG Multi-stream encoding
• Max 3840*2160 @1-20fps, 3072*1728 @1-25(30)fps
• WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS & Mobile
• 60 Meters IR Distance
• 2.8—12mm, 4X auto-zoom
• Weather Resistance IP67,

Operational

Image Sensor

1/2.5” 8Megapixel Hi3516D; OV4689 CMOS sensor

Effective Pixels

3840 (H) x 2160 (V) (max)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual,1/3~1/100000s

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR

S/N Ratio

>50dB

Video Output

1 channel, BNC(1.0Vp-p, 75Ω)

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR 120db

White Balance

Auto

Gain Control

Auto/Manual

Digital Noise reduction

2D – 3D

Privacy Masking

Up to 4 areas

IR Length

60 meter

Focal Lens

2.8—12mm, 4X motorize auto-zoom

Max Aperture

F1.4

Focus Control

Auto

Angle of View

H: 100°(Wide)~20°(Tele)

Lens Type

Motorize Φ14

Video

Compression

H.265/H.265+ Main Profile, H.264; Baseline/Main Profile/High Profile

Resolution

Main Stream: 50Hz: 20 fps (3840×2160), 25 fps (3072×1728, 2560×1440, 1920×1080, 1280×720) Sub Stream: 25fps (640×480, 640×360, 320×240)

Bit Rate

32Kbps-16Mbps adjustable, support CBR/VBR, Low latency

Audio

Compression

G.711a(32Kbps) / AMR(10.2Kbps)

Interface

1/1 channel In/Out

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,DNS, PPPOE, DDNS, FTP, NAS, IP Filter, QoS, Bonjour

ONVIF

ONVIF profile 5,G conformance

POE

Optional

Max. User Access

10 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 128GB, SD/SDHC/SDXC card (128GB), local storage and NAS (NFS, SMB / CIFS), ANR

RS485

1

Alarm

1/1 channel In/Out

Intelligent Function (optional)

Auto Tracking

Single-scene, multiple-scene, panorama-scene

Intelligent Video Surveillance (IVS)

Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Face Detection, Illegal Parking, Fast Moving, Intrusion Detection, Line Crossing Detection, ROI, Behavior Analysis and etc.

Tracking Trigger Mode

Manual / Auto (alarm triggered)

Tracking Trigger Event

Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

Mechanical

Dimensions

159.3(L)*98.8(W)*78.2(H)

Weight

1.5kg

Construction

Alloy shell, 3KV thunder protect, surge protect

Environmental

Temperature

Operating: -25 ̊C to 50 ̊C Storage: -35 ̊C to 60 ̊C

Relative Humidity Rating

0% to 85%, non-condensing IP67

Regulatory

Emissions

FCC: Part 15, Class B, CE: EN 55013

Immunity

CE: EN50130-4

Safety

EU: 73/23/EEC LVD

Electrical

Input Voltage

DC12V, PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 19W

Input Range

(±10%)

Surge Suppression

1.5 KW Transient

Power Consumption

5W max
