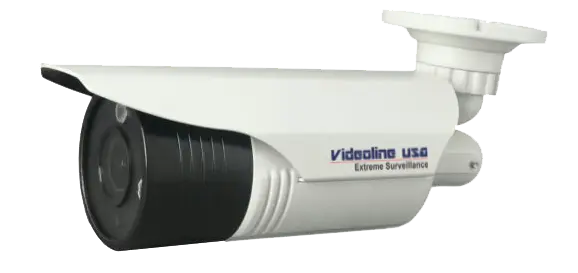

4MP IR Vandal proof Network Camera PX140Z-IRW
VideolineModel PX140Z-IRW
Price on request
Send an enquiry or call for the price and availability.
Specifications
Features
- 1/2.8” 4MP Hi3516D OV4689 CMOS sensor
- H.265, H.264 & MJPEG Multi-stream encoding
- Max 2688*1520 @1-15fps, 2048*1520 @1-25(30)fps
- WDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS & Mobile
- 60 Meters IR Distance
- 2.8—12mm, 4X auto-zoom
- Weather Resistance IP66,
Operational
- Image Sensor
- 1/2.8” 4Megapixel Hi3516D; OV4689 CMOS sensor
- Effective Pixels
- 2688 (H) x 1520 (V) (max)
- Scanning System
- Progressive
- Electronic Shutter Speed
- Auto/Manual,1/3~1/10000s
- Min. Illumination
- Color: 0. 6Lux/F1.2, B/W: 0.08Lux/F1.2
- S/N Ratio
- >50dB
- Video Output
- 1 channel, BNC(1.0Vp-p, 75Ω)
- Day/Night
- Auto(ICR) / Color / B/W
- Backlight Compensation
- BLC / HLC / WDR 120db
- White Balance
- Auto
- Gain Control
- Auto/Manual
- Gain Control
- 2D – 3D
- Privacy Masking
- Up to 4 areas
- IR Length
- 60 meter
- Focal Lens
- 2.8—12mm, 4X motorize auto-zoom
- Max Aperture
- F1.4
- Focus Control
- Auto
- Angle of View
- H: 100°(Wide)~20°(Tele)
- Lens Type
- Motorize
Video
- Compression
- H264,Baseline/Main Profile/High Profile ;H.265 Main Profile
- Resolution
- Main Stream: 2688*1520@1-15fps, 2048*1520@1-25(30)fps, 1920*1080@1-25(30)fps Sub Stream: 704*576@1-25(30) fps, 640*480@1-25(30) fps, 640*352@1-25(30) fps, 320*240@1-25(30) fps
- Bit Rate
- 32Kbps-16Mbps adjustable, support CBR/VBR
Audio
- Compression
- G.711a(32Kbps) / AMR(10.2Kbps)
- Interface
- 1/1 channel In/Out
Network
- Ethernet
- RJ-45 (10/100Base-T)
- Protocol
- IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
- ONVIF
- ONVIF Ver. 2.0 conformance
- Max. User Access
- 10 users
- Smart Phone
- iPhone, iPad, Android, Windows Phone
Auxiliary Interface
- Memory Slot
- Micro SD, Max 128GB
- RS485
- 1
- Alarm
- 1/1 channel In/Out
Mechanical
- Dimensions
- 159.3(L)*98.8(W)*78.2(H)
- Weight
- 1.5kg
- Construction
- Alloy shell, 3KV thunder protect, surge protect
Environmental
- Temperature
- Operating: -25 ̊C to 50 ̊C Storage: -35 ̊C to 60 ̊C
- Relative Humidity Rating
- 0% to 85%, non-condensing IP66
Regulatory
- Emissions
- FCC: Part 15, Class B, CE: EN 55013
- Immunity
- CE: EN50130-4
- Safety
- EU: 73/23/EEC LVD
Electrical
- Input Voltage
- DC12V
- Input Range
- (±10%)
- Surge Suppression
- 1.5 KW Transient
- Power Consumption
- 5W max
