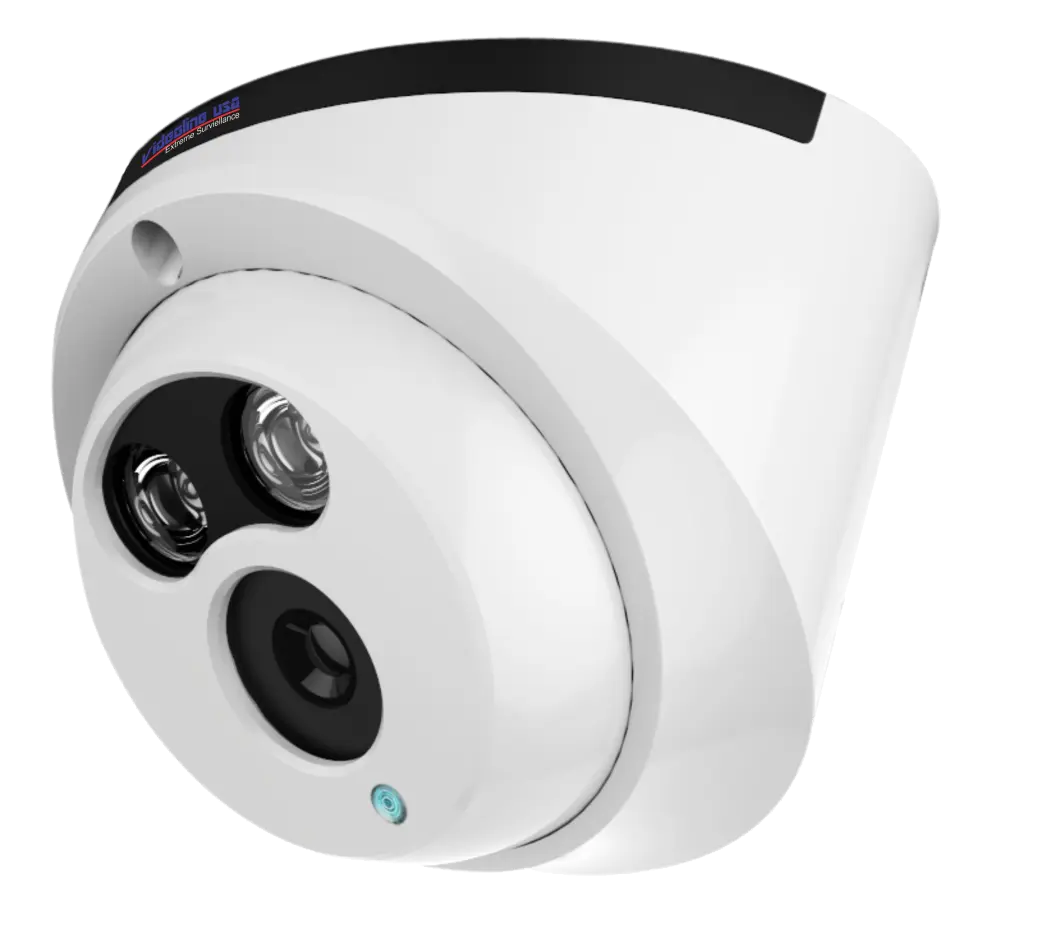

3MP CMOS HD Array IR Network Camera PN230B-IRD
VideolineModel PN230B-IRD
Price on request
Send an enquiry or call for the price and availability.
Specifications
Features
- 1/2.8” 3MP Hi3516D; OV4689 CMOS sensor
- H.265, H.264 & MJPEG Multi-stream encoding
- Max 2592*1520 @1-15fps, 2048*1520 @1-25(30)fps)
- DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS & Mobile
- Built-in alarm in/out
- 2Pcs Third Generation IR Array (70 Meters IR Distance)
- Weather Resistance IP66, IK10
General
- Processor
- TI DIS Series DSP
- Operating System
- Embedded LINUX
- Resource
- Simultaneous remote monitoring, local recording and remote control
- User Interface
- WEB BROWSER, CMS, MOBILE, NVR
Camera
- Image Sensor
- 1/2.8” 3Megapixel Hi3516D; OV4689 CMOS sensor
- Effective Pixels
- 2592 (H) x 1520 (V) (max)
- Scanning System
- Progressive
- Electronic Shutter Speed
- Auto/Manual,1/3~1/10000s Auto/Manual,1/4~1/10000s
- Min. Illumination
- Color: 0. 2LUX/F1.2, B/W: 0.01LUX/F1.2
- S/N Ratio
- >50dB
- Video Output
- 1 channel, BNC(1.0Vp-p, 75Ω)
- Day/Night
- Auto(ICR) / Color / B/W
- Backlight Compensation
- BLC / HLC / DWDR
- White Balance
- Auto
- Gain Control
- Auto/Manual
- Noise Reduction
- 2D
- Privacy Masking
- Up to 4 areas
- Lens
- 6, 8,12mm fixed
- Max Aperture
- F1.4
- Focus Control
- Manual
- Angle of View
- H: 79.3°(Wide)~29.8°(Tele)
- Lens Type
- Manual / Auto Iris (DC)
- Lens Type
- Board-in Type Megapixel
Video
- Video Compression
- H264,Baseline/Main Profile/High Profile; H.265 Main Profile
- Image Resolution
- Main Stream: 2592*1520@1-15fps, 2048*1520@1-25(30)fps, 1920*1080@1-25(30)fps Sub Stream: 704*576@1-25(30) fps, 640*480@1-25(30) fps, 640*352@1-25(30) fps, 320*240@1-25(30) fps
- Bit Rate
- 32Kbps-16Mbps adjustable, support CBR/VBR
- Snapshot
- Fastest 1fps JPEG capture
- Video Format
- PAL, NTSC
Audio
- Compression
- G.726
- Interface
- 1/1 channel In/Out
Network
- Ethernet
- RJ-45 (10/100Base-T)
- Network Functions
- HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, ONVIF ver 2.0
- Max. User Access
- 10 users
- Smart Phone
- iPhone, iPad, Android, Windows Phone
Auxiliary Interface
- Memory Slot
- SD, Max 32GB (optional)
- RS485
- 1
- Alarm
- 1/1 channel In/Out
Environmental
- Max. IR Distance
- 70M
- Power Supply
- DC12V, PoE(802.3af)
- Ingress Protection
- IP66, 4000V thunder, surge and wave protection
- Power Consumption
- Max. 10W
- Operating Environment
- 10°C~+50°C, 10%~90%
- Dimension
- 112mm × 91.5mm x 130mm (W/H/L)
- Weight
- 570g
