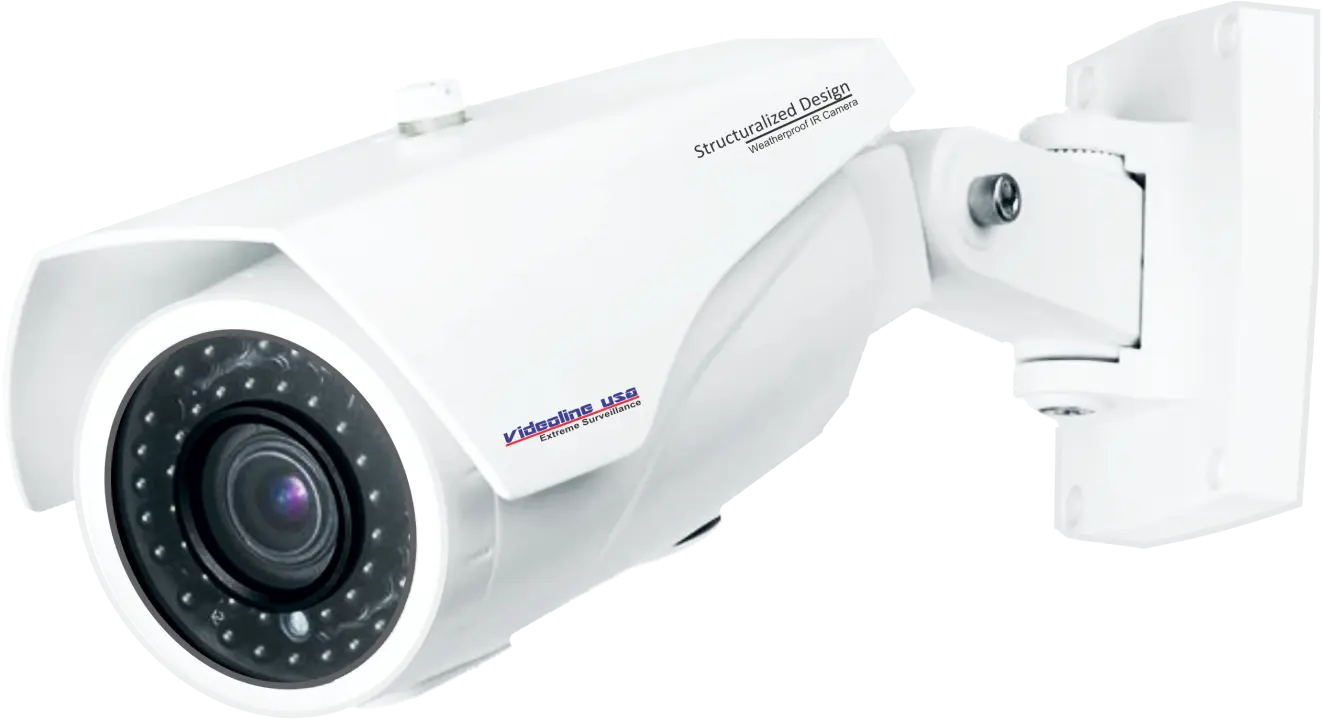

2MP CMOS HD IR Network Camera PN120-IRW
VideolineModel PN120-IRW
Price on request
Send an enquiry or call for the price and availability.
Specifications
Features
- 1/3” 2Megapixel progressive scan Exmor CMOS
- H.264 & MJPEG dual-stream encoding
- 25/30fps@1080P(1920×1080)
- DWDR, Day/Night(IRC), 2DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS& Mobile
- 2.8-12mm Mega pixels varifocal lens
- ONVIF 2.0 / GB28181 communication protocol
- Max. IR LEDs length 20m
- IP67 waterproof level
General
- Processor
- TI DaVinci Series DSP
- Operating System
- Embedded LINUX
- Resource
- Simultaneous remote monitoring, local recording and remote control
- User Interface
- WEB, CMS(DSS/ PSS), DMSS, NVR
Camera
- Image Sensor
- 1/3” 2Megapixel Exmor CMOS
- Effective Pixels
- 1920(H)x1080(V)
- Scanning System
- Progressive
- Electronic Shutter Speed
- Auto/Manual,1/3~1/10000s Auto/Manual,1/4~1/10000s
- Min. Illumination
- Color: 0. 2LUX/F1.2, B/W: 0.01LUX/F1.2
- S/N Ratio
- >50dB
- Video Output
- 1 channel, BNC(1.0Vp-p, 75Ω)
- Day/Night
- Auto(ICR) / Color / B/W
- Backlight Compensation
- BLC / HLC / DWDR
- White Balance
- Auto
- Gain Control
- Auto/Manual
- Noise Reduction
- 2D
- Privacy Masking
- Up to 4 areas
- Lens
- 2.8-12mm / 3.6~9mm (optional)
- Max Aperture
- F1.4
- Focus Control
- Manual
- Angle of View
- H: 79.3°(Wide)~29.8°(Tele)
- Lens Type
- Manual / Auto Iris (DC)
- Lens Type
- Board-i n Type
Video
- Video Compression
- H.264/MJPEG
- Image Resolution
- 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
- Encoding Speed
- 1080P/720P(1 ~ 25/30fps)
D1/CIF(1~25/30fps)
- Bit Rate
- H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
- Snapshot
- Fastest 1fps JPEG capture
- Video Format
- PAL, NTSC
Audio
- Compression
- N/A
- Interface
- N/A
Network
- Ethernet
- RJ-45 (10/100Base-T)
- Network Functions
- HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, ONVIF ver. 2.0
- Remote Operation
- Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade
- Max. User Access
- 20 users
- Smart Phone
- iPhone, iPad, Android, Windows Phone
Auxiliary Interface
- Memory Slot
- optional
- RS485
- N/A
- Alarm
- N/A
Environmental
- Max. IR Distance
- 30m
- Power Supply
- DC12V
- Ingress Protection
- IP67, 4000V thunder, surge and wave protection
- Power Consumption
- Max. 10W
- Operating Environment
- 10°C~+50°C, 10%~90%
- Dimension
- 285mm x 176mm x 138mm
- Weight
- 1.75Kg
