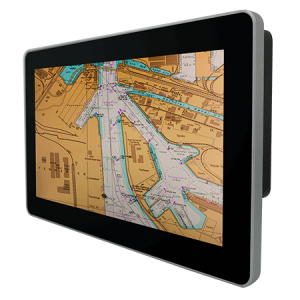

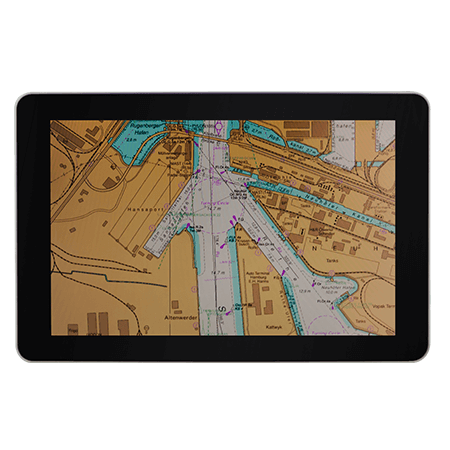

| Display | |
| Resolution | 1920x1080 |
| Contrast Ratio | 5000:01:00 |
| Size | 24.0 inches |
| Panel Brightness | 300 nits |
| Active Area | 531.36x298.89 mm |
| View Angles | 89,89,89,89 |
| Touch/glass | Projected Capacitive Multi Touch Screen AR Glass (Optional) |
| Environment | |
| Operating Humidity | 5% to 95% |
| Shock | 15G,11ms duration |
| IP rating | IP66 (Front Side) |
| Vibrartion | 0.7g@DNVGL CG0339 (Class A) |
| Operating Temperature | -15~55°C |
| IO Ports | |
| USB Port | 2 x USB , 3.0 1 x USB2.0 |
| Video | 1 x HDMI (Optional) |
| Front Control | Power Brightness + Brightness Menu Function Key(Default setting: ECDIS Mode) |
| DIDO | 8 Channel Isolated Digital Input/Output (Optional) |
| Indicator | Day Mode Dusk Mode Night Mode |
| NMEA | 4 x NMEA 0183 Port (Optional) |
| LAN | 2 x RJ45 |
| Serial Port | 1 x RS232/422/485 |
| Mechanical | |
| Dimensions | 609.5 x 399.3 x 76.2 mm |
| Mounting | VESA Mount/ Panel Mount |
| Cooling system | Fanless Design |
| Enclosure | Anodized Aluminum Bezel |
| System Specification | |
| Processor | Intel® Core™ i55350U Processor
1.8GHz (3M Cache, up to 2.90 GHz) |
| Storage | 1 x mSATA SSD 64GB mSATA SSD up to 512GB (Optional) |
| Memory | 1 x SODIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Operating System | Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) |
| Ethernet controller | Intel® Ethernet Controller
I211AT+ Intel® Ethernet Connection I218LM |
| Power | |
| Power Rating | 24V DCin with Isolation (Approval by Certificate) 9~36V DC Input Accpetable |
| Certification | |
| Certification | DNVGLCG0339, IEC60945 4th, IACS E10, CE, FCC |
