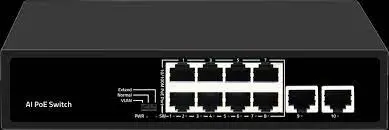

ZX900-AF-82N 10-port 10/100M AI PoE

Model ZX900-AF-82N

Price on request

Send an enquiry or call for the price and availability.

Specifications

Network Protocol: IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3x (Flow control)
PoE Protocol: IEEE802.3af （15.4W） IEEE802.3at （30W）
Industry Standard: EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Network Medium: 10Base-T: Cat3、4、5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m)

Working envirnment: Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet

LCD Indicators: PWR（power supply），SW（DIP），1-10 Green（Link&Data）
DIP Switch: VLAN：Port isolation mode.
In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
The port AI mode is turned on.
Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive;
The port AI mode is closed.
Extend ： Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on

Structure Size: Product Dimension (L*W*H): 200mm*120mm*45mm Package Dimension (L*W*H): 245mm*190mm*60mm N.W：0.6kg G.W：0.9kg
Packing info: Carton MEAS：505*320*402mm Packing Qty：20 units Packing Weight：19KG
Power Voltage: Input Voltage ：AC 100-240 V Power supply：52V2.3A
Packing List: Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable)
