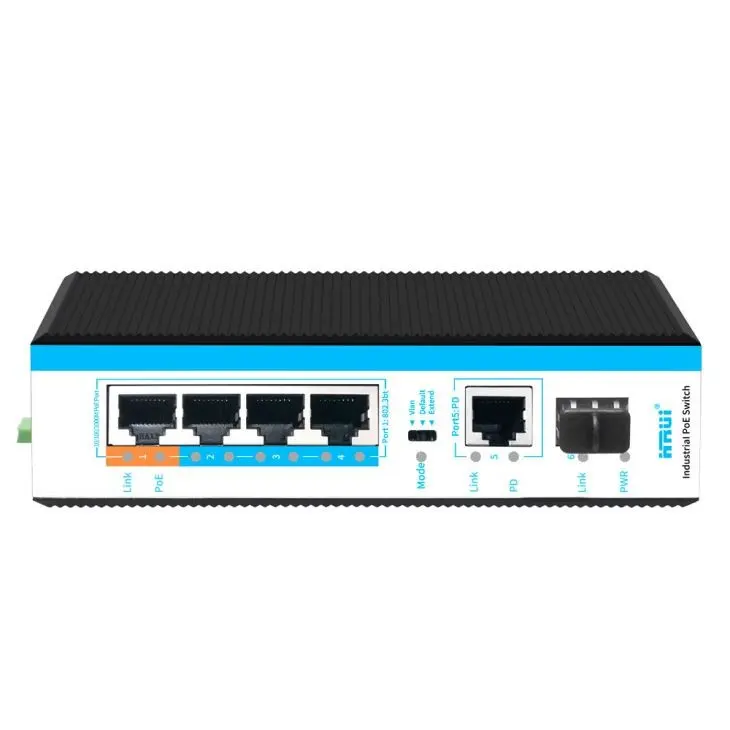

HRUI Industrial 6 Port 90W Gigabit POE Switch

Note

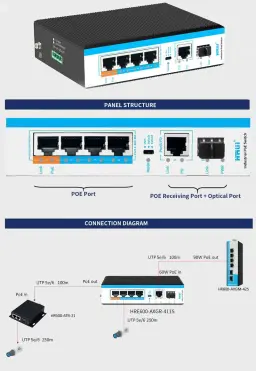

HR600-AXGR-411S (4*Gigabit POE ports+1*Gigabit Uplink Ethernet port+1*Gigabit SFP port)

Product name

6 ports Gigabit Intelligent Industrial PD POE Switch

Connector Type

4*Gigabit POE ports+1*Gigabit Uplink Ethernet port(60W POE power)+1*Gigabit SFP port ；Port 1 supports BT 90W power supply

Network Protocols

IEEE802.3IEEE802.3xIEEE802.3uIEEE802.3abIEEE802.3z

POE Parameters

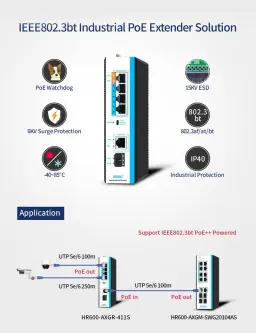

POE Standard: IEEE802.3af /IEEE802.3at /IEEE802.3bt

Each port Max：

15.4 W (IEEE 802.3af)

Each port Max：

30 W (IEEE 802.3at) BT port 1：90W (IEEE802.3bt)

POE port output

DC24V

POE power supply core：

1/2+ ; 3/6-（4/5+；7/8-）（1/2-；3/6+）

Network Media

10BASE-T: Cat5 UTP(≤250 m)100BASE-TX: Cat5 or more UTP(≤100 m)1000BASE-TX: Cat5 or more UTP(≤100 m)

Fiber Media

Multi-mode：850nm，1310nm transmission distance：550m/2KmSingle-mode：1310nm，1550nm transmission distance：20/40/60/80/100/120Km

Dial function

VLAN：1-4 ports are isolated from each other (left, lighting) .POE watch dog is on

Default：Normal mode (middle, off) POE watch dog is off

Note

Extend： The port 4 is 10M 250m (right，flash）POE watch dog is on

Power Supply

Power input: DC 48～55V/uplink POE powerpower supply wiring:4 PIN Industrial Phoenix Terminal （redundancy V1+V1-,V2+V2-）

Working Environment

Operating Temperature: -40～85℃Storage Temperature: -40～85℃Humidity: 5%~95 %( non-condensing)

Industry Standard

EN61000-4-2 (ESD) contact 8KV, air 15KV IEN61000-4-5 （Surge）common mode 6KV, differential mode 2KV EN61000-4-3 （RS） EN61000-4-6 （CS）EN61000-4-4 （EFT）FCC Part 15/ CISPR32 /EN55032： CLASS AIEC 60068-2-27 Shock testIEC 60068-2-32 Free fall testIEC 60068-2-6 Vibration test

Mechanical Structure

Shell protect grade: IP40Installation: DIN railN.W：0.5KG G.W: 0.7KG（without power supply）Product Dimension (L×W×H): 145mm×108mm×40mmPackage Dimension (L×W×H): 240mm×207mm×55mm

Package Contents

1. Industrial Switch： 1 unit2. User Guide：1unit1. Certificate warranty card：1unit

Certification

CE、FCC、CCC、RoHS

MTBF

100,000 hours

Warranty

5 years

Hardware parameter

Bandwidth

12Gbps

Cache

1M

Package Forwarding Rate

8.928Mpps

MAC address

8K

Forwarding mode

Store-and-forward
