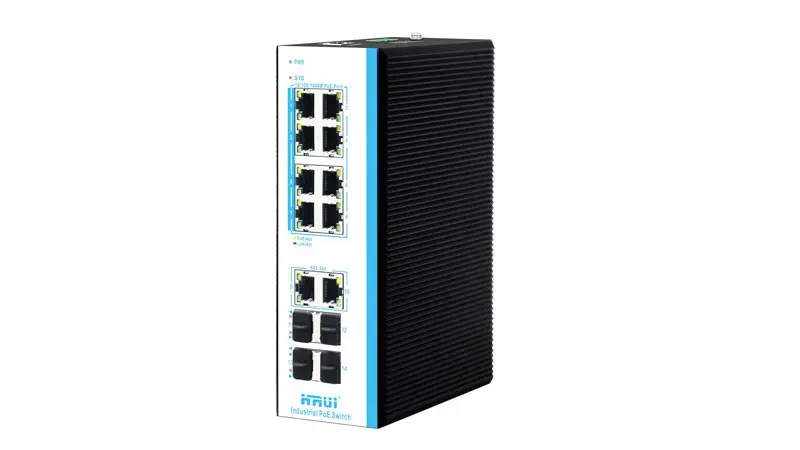

HRUI Industrial 14 Port Gigabit POE Switch

Name: HRUI Industrial 14 Port Gigabit POE Switch
Brand: HRUI

HRUIModel HR600-AXGM-SWG20104S

Price on request

Send an enquiry or call for the price and availability.

Specifications

Note: HR600-AXGM-SWG20104S （10*Gigabit PoE Ports(9-10 Port Support BT) + 4*Gigabit SFP Port + 1*Console Port）
Product Name: 14 Ports Gigabit Industrial Managed PoE Switch
Product Model: HR600-AXGM-SWG20104S
Port Definition: 10 Gigabit PoE Ports(9-10 Port Support BT) + 4 Gigabit SFP Port + 1 Console Port
Network Protocols: IEEE802.3IEEE802.3uIEEE802.3zIEEE802.3abIEEE802.3xIEEE802.1dIEEE802.1w
POE Parameters: POE Standard: IEEE 802.3af/IEEE 802.3at/IEEE802.3bt
Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af)Max: 30 W (IEEE 802.3at)

PoE Compatibility: IEEE 802.3af / at / bt adaptive
POE Power Output: DC48-55V
POE Power Pin: 1/2- ; 3/6+（bt：1/2- 3/6+ ；4/5+ 7/8-）
Network Media: 10BASE-T: Cat5UTP(≤250 M)100BASE-TX: Cat5 or aboveUTP(≤100 M)1000BASE-TX: Cat5 or aboveUTP(≤100 M)
Fiber Media: Multi-mode：850nm,1310nm Transmission Distance:550m/2KmSingle-mode：1310nm,1550nm Transmission Distance:20/40/60/80/100/120Km
Power Supply: Input Voltage: DC48～55VType of input: 4 PIN terminal （blockV1+V1- V2+ V2-）
Physical structure: Protect grade： IP40Installation：DIN RailProduct weight： 1 KG Package weight：1.3KG（Without power）Produc Dimensions(L×W×H): 188mm*130mm*64mmPackage Dimensions(L×W×H): 250mm×210mm×88mmStandard packing(L×W×H): 608mm×500mm×435mmStandard packing quantity：28(PCS)
Working Environment: Operating temperature: -40～85℃Storage temperature: -40～85℃Humidity: 5%~95 % ( No condensation)
Industry Standard: EMI: FCC Part 15, CISPR (EN55032) class AEMS: EN61000-4-2 (ESD)EN61000-4-4 (EFT)EN61000-4-5 (Surge)Shock: IEC 60068-2-27Free fall: IEC 60068-2-32Vibration: IEC 60068-2-6
Certification: CE mark, commercialFCC Part 15 Class BVCCI Class BEN 55032, Class A
MTBF: 100,000 Hours
Packing list: 1.Industrial grade switch: 1 Set2.Instruction manual: 1PCS3.Certificate, warranty card: 1PCS4.Serial cable：1PCS5.Operation manual CD：1 PCS
Warranty: 5 years

Port management: Support enable / disable portSupport speed, duplex, MTU setting, etc.Support flow control flow control settingsSupport port mirroring.Support port in / out directionSupport port speed limitSupport port isolation settingUnknown unicast, multicast, broadcast storm suppression
STP: Standard Spanning Tree (STP) 802.1dRapid Spanning Tree (RSTP) 802.1wMultiple Spanning Tree (MSTP) 802.1s
Ring Network Protocol: ERPS
Link Aggregation: Support static manual aggregationSupport LACP dynamic convergence
VLAN: Support Port based VLAN and IEEE 802.1Q VLAN
IGMP Snooping: Support static add / delete
MAC: Support static add / deleteMAC address learning limitSupport dynamic aging time settings

ACL: based on the source MAC, destination MAC, protocol type, source IP, destination IP, L4 port numberSupport time-range time management
QOS: based on 802.1p (COS) classificationBased on DSCP classificationBased on the source IP, destination IP, port number classificationSupport SP, WRR, DRR scheduling strategySupport traffic speed limit CAR
LLDP: supports LLDP link discovery protocol
User Setting: Support add/delete user
Log: User login, operation, status, event log
Port security: Dyning Gasp、Snmp Trap
Prevent Attack: DOS defenseSupport for CPU protection, limited to send CPU message rateARP binding (IP, MAC, PORT binding)
System Management: Device reset, configuration save/restore, upgrade management, time setting, etc.

The price, availability, or installation for HRUI Industrial 14 Port Gigabit POE Switch. We reply by phone or email.
