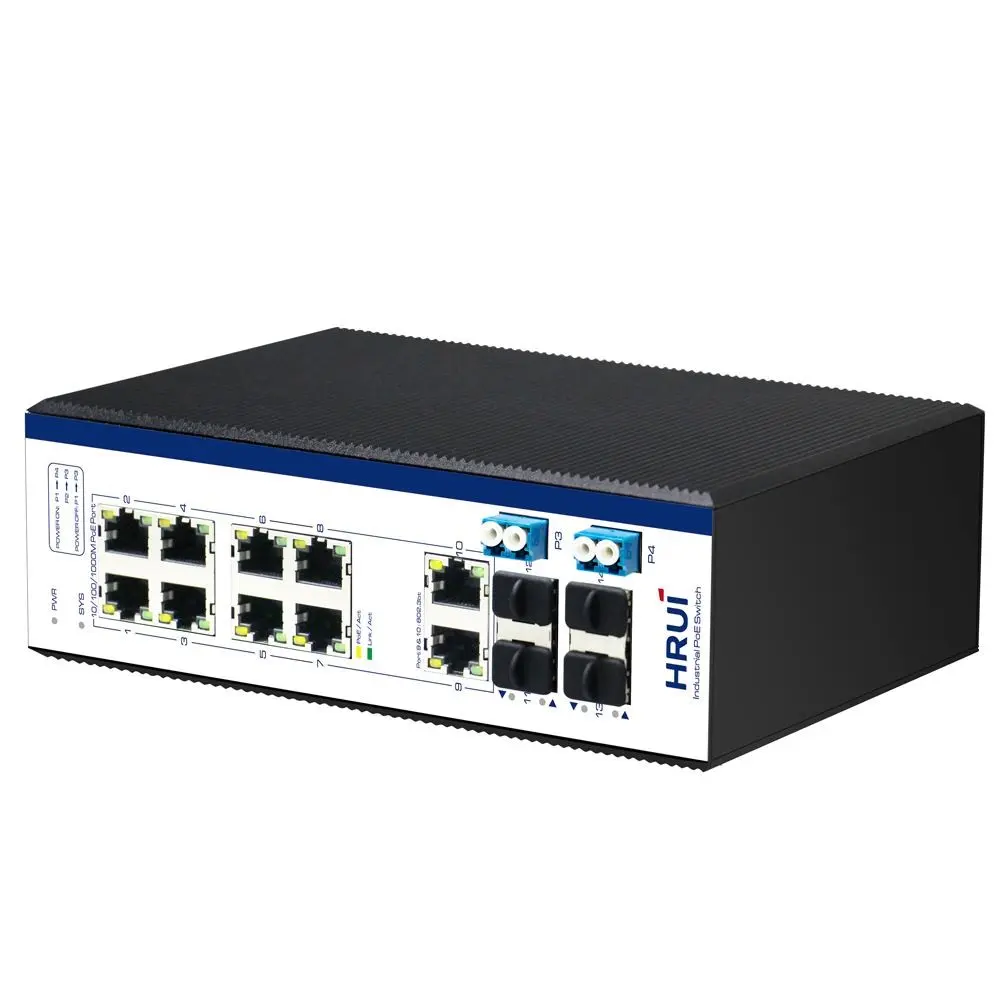

HRUI 14 Port Industrial BYPASS 2.5G Managed POE Switch

• HR600-AXGM-SWG20104AS-BP-BYPASS 2.5G POE SWITCHES 10*Gigabit PoE Ports(9-10 Port Support BT) + 4*Gigabit SFP Port (13-14 Port support 2.5G, Compatible with 1.25G/155M) + 1*Console Port

Features

• 1. 10*Gigabit PoE Ports(9-10 Port Support BT) + 4*Gigabit SFP Port (13-14 Port support 2.5G, Compatible with 1.25G/155M) + 1*Console Port
• 2. Support IEEE802.3，IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1Q，IEEE802.1p，IEEE802.1d/w
• 3. Support PoE Power Management, PoE Watchdog based on data stream detection
• 4. Support bypass protection function
• 5. Support STP（802.1D）, RSTP（802.1w），MSTP（802.1s），ERPS.
• 6. Support SNMP v1/v2/v3.
• 7. Support IGMP Snooping , Static multicast filtering and MLD Snooping.
• 8. Support 802.1x port and AAA Certification，Enhance network security.
• 9. Support WEB, Telnet，CLI,SSH management.
• 10. Support IEEE802.3af(15.4w), IEEE802.3at(30W), IEEE802.3bt(90W)
• 11. IP40 protection, rugged high-strength metal case，DIN35Rail mounting
• 12. EMC grade 4 design，-40 to 85℃ working temperature.
• 13. Support Redundant power supply access, support anti-reverse connection.
• 14. Support Port lightning protection, Surge：General Mode6KV,Differential Mode2KV,ESD: Air 15kV, contact 8KV
• 15. Support EMC EN55032standard.
