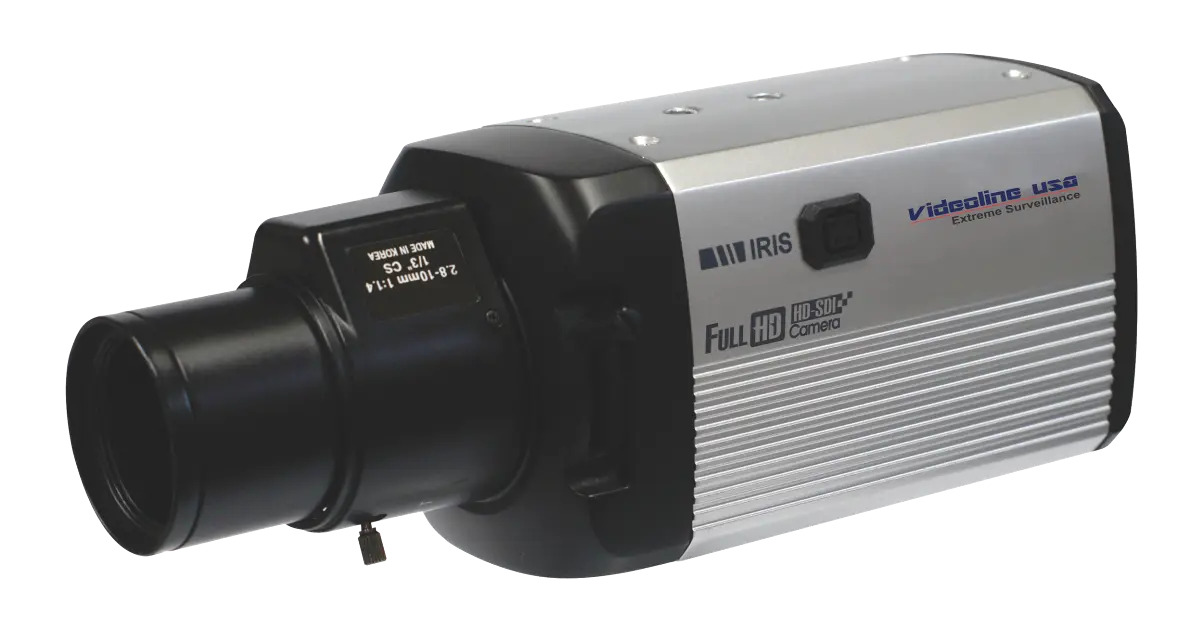

HD-SDI 3-AXIS Day & Night Box Camera HD721-BX

Features

•  Full HD (1920x1080P) image via HD-SDI interface with conventional coaxial connection
• Defog: Defog technology enhances visibility in real- time in fog, smoke, lowlight, dust and etc. conditions.
• Adopted Smart DNR technology, it reduces noise efficiently in low light condition.
• Provide Max. 64X digital zoom
• Support 8 different privacy zone
• Multi-language full OSD support.
• This camera can distinguish daytime and night. And it changes its mode according to intensity of illumination. It can watch an object at most suitable mode, "Color in daytime, and B/W at night".
• You can connect power supply regardless polarity.

Operational

Image Sensor

1/3" 2.1Megapixel CMOS

Scanning System

Progressive Scan

Effective Pixel

1944(H) x 1092(V) Pixel

S/N Ratio

50dB or More

Video Output Mode

1080P(1920 x 1080) 30fps

Video Output Level

HD-SDI / 1.0 Vp-p(75Ω, Composite), NTSC/PAL(Selectable)

Min. Illumination

1.0Lux(Color), 0.5Lux(BW), 0.02Lux(Sens-up x60)

Shutter Speed

1/30(1/25) ~ 1/50,000sec

White Balance

AWB / AWC-SET / MANUAL / INDOOR / OUTDOOR

Backlight

BLC / HSBLC / OFF

ACCE(DWDR)

LOW / MIDDLE / HIGH / OFF

AGC

LOW / MIDDLE / HIGH

Adjustment

SHARPNESS / MONITOR / LSC / NTSC/PAL

OSD

English, Japanese, Chinese(Selectable)

Day & Night

ICR(AUTO / COLOR / BW / EXT)

2D/3D-NR

2DNR / 3DNR / SMART NR

Digital Zoom / PIP

ON / OFF(X2 ~ X64)

Privacy Zone

ON / OFF(8 Zone Selectable)

Motion Detection

ON / OFF(3 Zone Selectable)

Defect Pixel Compensation

LIVE DPC / STATIC DPC

Sense-up

ON / OFF(Selectable limit ~ X60)

D-Effect

FREEZE / MIRROR / D-ZOOM / NEG.IMAGE

Communication

RS - 485(Baud Rate: 2400 ~ 38400)

Protocol

Pelco-D

Lens

CS Mount

Electrical

Input Voltage

12 VDC

Input Range

±10%

Surge Suppression

1.5 KW transient

Power Consumption

15 W (max)

Mechanical

Dimensions

59.8(W) x 63.8(H) x 109.4(D)mm

Weight

300grams

Construction

Brushed and anodized Aluminum

Mounting Plate

Connection to 4S junction box

Connector

Video Output: BNC Connector Power Input: Tinned Leads

Environmental

Temperature

Operating: -25 ̊C to 50 ̊C Storage: -35 ̊C to 60 ̊C

Relative Humidity

0% to 85%, non-condensing

Rating

IP65

Regulatory

Emissions

FCC: Part 15, Class B CE: EN 55013

Immunity

CE: EN50130-4

Safety

EU: 73/23/EEC LVD
