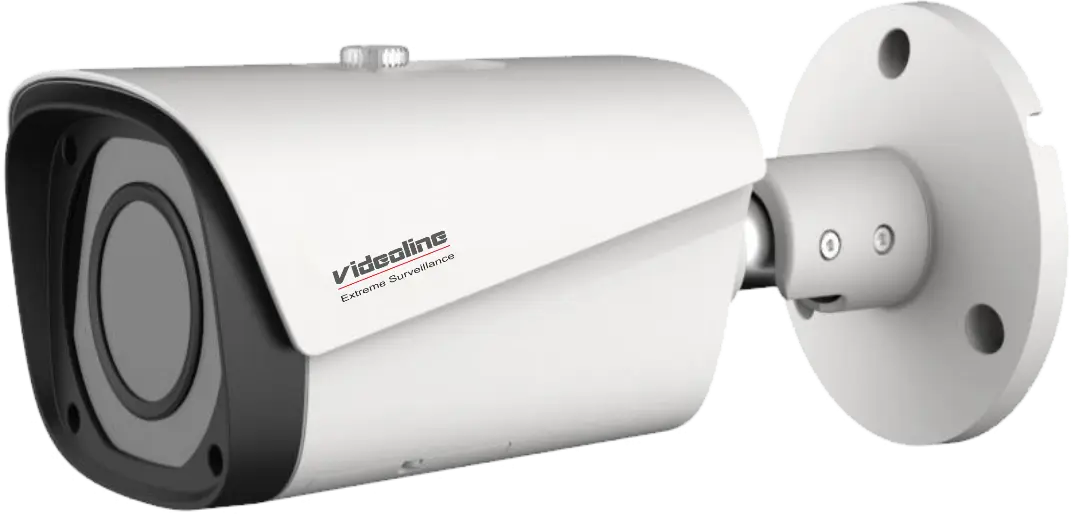

HA115-IRW High Definition CVI Vandal Resistant IR Camera
VideolineModel HA115-IRW
Price on request
Send an enquiry or call for the price and availability.
Specifications
Features
- Day/Night Vandal Proof IR Camera
- 1.0 Megapixel CMOS
- Smart IR LEDs, 30M IR Distance
- Built-in IR Cut filter
- Weather Resistance: IP66
- Digital Noise Reduction (DNR)
- Auto White Balance (AWB)
- Lens: 3.6,6,8 & 12 mm Fixed Lens
- Support 25/30fps @720P
Operational
- Video Standard
- NTSC / PAL
- Image Sensor
- 1.0 Megapixel CMOS
- Effective Pixels
- 1280(H) x 960(V)
- Illumination
- 0 LUX, operates in total darkness
- Video Output
- CVI BNC, CVBS terminal
- Lens Mount
- Fixed
- Lens
- 6mm Fixed (3.6, 6, 8 & 12mm Optional)
- Sync System
- 12 VDC: Internal
- S/N Ratio
- More than 52 dB (AGC off)
- Electronic Shutter
- 1/60 – 1/120,000 sec (NTSC) 1/50 – 1/120,000 sec (PAL)
- Gain Control
- Automatic
- White Balance
- Automatic
- BLC
- Automatic
- IR LED
- Smart IR LEDs
- IR Distance
- 30 Meter
- DNR
- Automatic
- WDR
- Digital / Automatic
Electrical
- Input Voltage
- 12V DC
- Input Range
- ±25%
- Surge Suppression
- 1.5 KW transient
- Power Consumption
- DC12V±1V(Max 4W, Max 7W when IR cut switch)
Mechanical
- Dimensions
- Φ70mm×165mm
- Weight
- 550 grams
- Construction
- Brushed and anodized plastic with sunshield
- Connector
- Video Output: BNC Connector Power Input: Tinned Leads
Environmental
- Temperature
- 10oC ~ +55oC
- Relative Humidity
- 0% to 85%, non-condensing
- Rating
- IP66
Regulatory
- Emissions
- FCC: Part 15, Class B CE: EN 55013
- Immunity
- CE: EN50130-4
- Safety
- EU: 73/23/EEC LVD
Ask about this product
The price, availability, or installation for HA115-IRW High Definition CVI Vandal Resistant IR Camera. We reply by phone or email.
