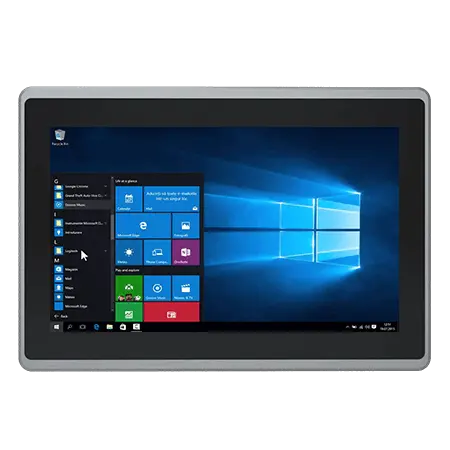

Winmate 7" W07IB3S-PPT1 Intel® Celeron® N2930 PP Series HMI Panel PC

• 7" Intel® Celeron® N2930 PP Series HMI Panel PC
• 7” 1024 x 600 Resolution
• PCAP multi-touch screen
• Front IP65 Water and Dust Proof
• Dual Gigabit Ethernet
• Fanless cooling system and ultra-low power consumption

Display

Size

7.0 Inches

Touch/Glass

Projected Capacitive Multi Touch Screen

Resolution

1024x600

Panel Brightness

230 nits

Contrast Ratio

500:1

View Angles

75,75,75,70

Active Area

153.6×90 mm

Sytem Specification

Processor

Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)

Memory

1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional)

Storage

1 x M.2 2242 B-key SSD 64GB M.2 2242 B-key SSD up to 512GB (Optional)

Ethernet controller

Intel® Ethernet Controller I211-AT +

Security

TPM 2.0

Operating system

Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional)

WLAN

802.11 a/b/g/n/ac (Optional)

BT

BT Support (Optional)

Mechanical

Dimension

184.94 x 127.7 x 48.2 mm

Cut out

175x117mm

Mounting

Panel mount VESA Mount

Enclosure

Plastic Front Bezel with Metal Back Cover

Cooling system

Fanless design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Tempreture

0~50°C

Storage Tempreture

20~60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB3.0 (Type-A) 1 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

2 x Giga LAN RJ45 Connector 2 x Giga LAN RJ45 Connector (one with PoE PD, 802.3 at) (Optional

Video

1 x HDMI 1.4 (Optional)

Expansion Port

1 x mPCIe slot(for half size Wifi module)

mini Pcle

1 x Mini PCIE(For WLAN)

Power Input

1 x 12V DC, 2.5φ DC jack

Accessory

Accessory

100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws Mounting clips

Power

Adapter

12V 50W

Power rating

12V DC
