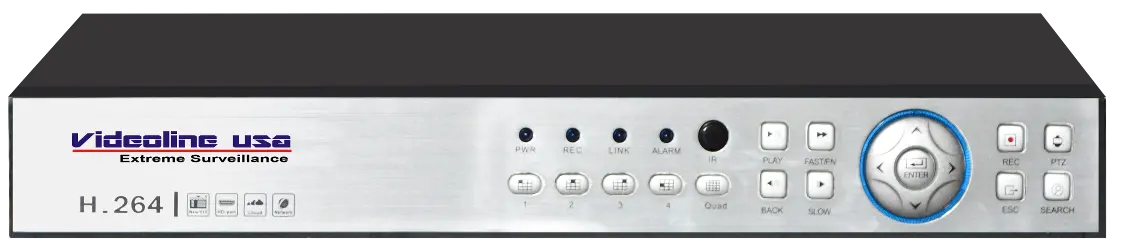

4 Channel 1U Standalone Trio DVR VS7404-HCD

Features

Note

4 Channel simple 1U standalone Trio DVR

Note

Support Analog CVI / AHD / TVI / IP Video input

Note

H.264 compression and H.264/MPEG4 decoding

Note

Multi encoding streams supported

Note

HDMI, VGA synchronous video output

Note

Live, recording, playback, backup & remote access

Note

Up to 4 channels simultaneous playback

Note

Smart video detection, MD, Camera Blank, Video loss

Note

3D intelligent positioning with special PTZ dome

Easy Backup

USB Devices & network download

Note

Alarm triggering screen tips, buzzer, PTZ, E-mail FTP upload

Note

Support 1 SATA HDD & 2 USB2.0

Multiple network monitoring

Web viewer, CMS & Mobile viewer

System

· Main processor · High performance embedded microprocessor

Operating System

Embedded Linux

System Resources

Pentaplex function: Live, Recording, Playback, Backup & Remote access

GUI

Unified PVR frontend (DVR/HTPC client GUI with EPG) and Add-ons API for PVR backend

Control Mode

Front Panel, USB mouse, IR remote control, Keyboard, Network

Video

· Analog Input · 4 CH, BNC(1.0Vp-p,75Ώ NTSC(525line,60f/s), PAL(625line,50f/s)

IP

1080P/720P/D1/CIF IP Camera

HD

1080P/720P AHD/CVI/TVI Camera

Audio

· Input · 4 Ch, RCA/BNC(200-2800mV,30K Ώ)

output

1 Ch, RCA/BNC(200-3000mV,5KΏ)

Bidirectional Talk

1 Channel input, BNC(200-2800mV,30K Ώ),1 Channel output, BNC(200-2800mV,5K Ώ)

Display

· Output · 1 HDMI, 1 VGA

Display Split

1/4

Resolution

1920× 1080, 1280× 1024, 1280× 720, 1024× 768, 800× 600

Tour Display

Support

Privacy Masking

4 self-defined four sided zones for privacy masking for each camera

OSD

Camera title, time, video loss, camera lock, motion detection, Recording

Note

Recording · Video/Audio Compression · H.264/G.711

Image Resolution

1080P/720P/960H/D1/(1~25/30fps)

Encoding Speed

Main Stream: 1080P/720P/960H/D1/(1~25/30fps) Extra Stream: D1/CIF/QCIF (1~25/30fps)

Bit Rate

48~16384Kb/s

Image Quality

1~6level(Level 6 is the best, VBR effectively)

Recording priority

Manual>Alarm>MD>Regular

Recording Interval

1~120min,(default 60min),pre-record:1~30sec,Post record:10~300sec

Note

Video Detection & Alarm · Triggers Events · Recording, PTZ movement, tour, Alarm, Email, Spot Output

Motion Detection

Zones:396(22x18), Sensitivity:1~6 (level 6 is highest)

Video loss & Camera Blank

Support

Note

Playback & Backup · Playback CH · 1/4/9/16

Search Mode

Time/Date, Alarm, Motion Detection & Exact Search (accurate to Sec)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup selection, Digital Room (any size)

Backup Mode

Flash Drive/USB HDD/USB CD/DVR-RW /Network Download

Network

· Ethernet · RJ-45Port (10/100M)

Network Functions

TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email. Alarm Server

Remote Operation

Monitor, PTZ Control, Playback, System Setting, File Download, Log Information

Note

Hard disk · Hard Disk · 1 SATA ports, Max 4 TB HDD Supported

Space occupation

Audio:28.8MB/H Video:56~500MB/H

HDD Management

HDD hibernation Technology, HDD Faulty alarm

Note

Auxiliary Interface · USB Interface · 2 ports, 1 for Mouse Control,1 for Backup

RS232

Key Board, PC Communication

RS485

PTZ Control

Environmental

· Power Supply · DC12V/4A

Power Consumption

25W

Working Environment

10~+55°C/10~90%RH /86~106kpa

Dimension

1U, 440mm×416mm×68mm (WXD/H)

Weight

5KG (Without HDD)
