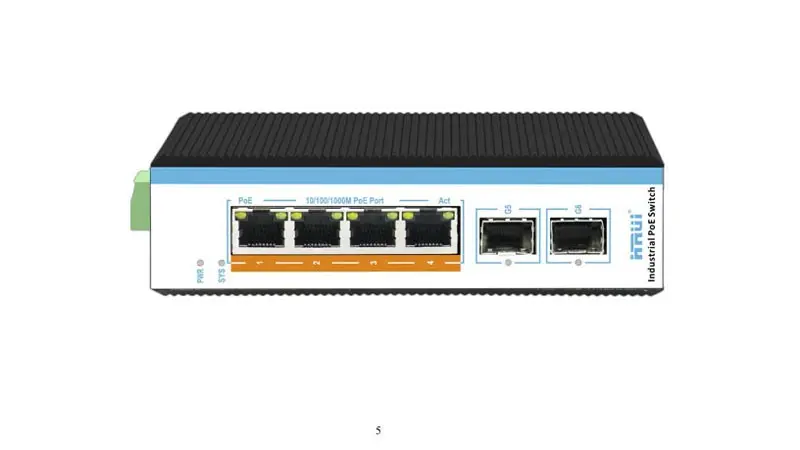

HRUI 2.5G Industrial 4 Gigabit Port POE Switch With SFP Uplink

Note

HR600-BTGM-42AS (4*Gigabit PoE Ports(Support BT) + 2 *2.5G SFP Port (compatible with 1.25G/155M) + 1*Console port)

Product Name

6 Ports Gigabit Managed Industrial PoE Switch

Product Model

HR600-BTGM-42AS

Interface

4*Gigabit PoE Ports(Support BT) + 2 *2.5G SFP Port (compatible with 1.25G/155M) + 1*Console port

Network Protocols

IEEE802.3IEEE802.3uIEEE802.3zIEEE802.3abIEEE802.3xIEEE802.1dIEEE802.1w

PoE Parameters

POE Standard: IEEE802.3af /IEEE802.3at/IEEE802.3bt

Single PoE Port Power Output

Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at)Max：90W (IEEE 802.3bt)

PoE Compatibility：IEEE802.3af/at/btadaptive

POE Power Output

DC48-55V

POE Power Pin

1/2- ;3/6+ （bt：1/2- 3/6+；4/5+ 7/8-）

Network Media

10BASE-T: Cat3,4,5UTP(≤100 M)100BASE-TX: Cat5 or aboveUTP(≤100 M)1000BASE-TX: Cat5 or aboveUTP(≤100 M)

Fiber Media

Multi-mode：850nm，1310nm Transmission Distance:550m/2KmSingle-mode：1310nm，1550nm Transmission Distance:20/40/60/80/100/120Km

Power Supply

Input Voltage: DC12～55VType of input: 4 PIN Industrial Terminal（blockV1+V1- V2+ V2-）

Physical structure

Protect grade： IP40Installation：DIN RailProduct weight：0.6KG Package weight:0.8 KG（Without power）Product Dimensions (L×W×H)： 145mm×125mm×40mmPackage Dimensions (L×W×H)：250mm×210mm×65mmStandard packing(L×W×H)：608mm× 500mm× 435mmStandard packing quantity：36 (PCS)

Working Environment

Operating temperature: -40～85℃Storage temperature: -40～85℃Humidity: 5%~95 % ( No condensation)

Industry Standard

EMI: FCC Part 15, CISPR (EN55032) class AEMS: EN61000-4-2 (ESD)EN61000-4-4 (EFT)EN61000-4-5 (Surge)Shock: IEC 60068-2-27Free fall: IEC 60068-2-32Vibration: IEC 60068-2-6

Certification

CE mark, commercialFCC Part 15 Class BVCCI Class BEN 55032 , Class A

MTBF

100,000 hours

Packing list

1. Industrial grade switch: 1 Set2. Instruction manual: 1PCS3. Certificate, warranty card: 1PCS4. Serial cable：1PCS5. Operation manual CD：1 PCS

Warranty

5 years

HardwareParameters

Bandwidth

18Gbps

PacketForwarding Rate

13.39Mpps

Packet Buffer Memory

4M

RAM

128MB

Flash

16MB

VLANs

4096

MAC

8K

Jumbo frame

9.6Kbytes

Forwarding Mode

Store-And-Forward

L2 Management

Port Management

Support enable / disable portSupport speed, duplex, MTU setting, etc.Support flow control flow control settingsSupport port mirroring.Support port in / out directionSupport port speed limitSupport port isolation settingUnknown unicast, multicast, broadcast storm suppression

STP

Standard Spanning Tree (STP) 802.1dRapid Spanning Tree (RSTP) 802.1wMultiple Spanning Tree (MSTP) 802.1s

Ring Network Protocol

ERPS

Link Aggregation

Support static manual aggregationSupport LACP dynamic convergence

VLAN

Support VLAN and IEEE 802.1Q VLAN

IGMP Snooping

Support static add / delete

MAC

Support static add / deleteMAC address learning limitSupport dynamic aging time settings

L3 ( Layer 3 Switching ) And Router Function

Interface Configuration

Support virtual VLAN interface

ARP

Support check ARP

Router Function

Static Router

Extended Function

ACL

Based on the source MAC, destination MAC, protocol type, source IP, destination IP,L4 port numberSupport time-range time management

QOS

Based on 802.1p (COS) classificationBased on DSCP classificationBased on the source IP, destination IP, port number classificationSupport SP, WRR, DRR scheduling strategySupport traffic speed limit CAR

LLDP

Support LLDP

User Setting

Support add/delete user

Log

User login, operation, status, event log

Port security

Dyning Gasp、Snmp Trap

Prevent Attack

DOS defenseSupport for CPU protection, limited to send CPU message rateARP binding (IP, MAC, PORT binding)

System Management

Device reset, configuration save/restore, upgrade management, time setting, etc.

Management Function

CLI

Support serial command line management

TELNET

Support serial command line management

SSH

Support SSHv1/2 remote management

SNMP

Support v1/2/3

WEB

Support two layers of settings

PoE

PoEPower management
