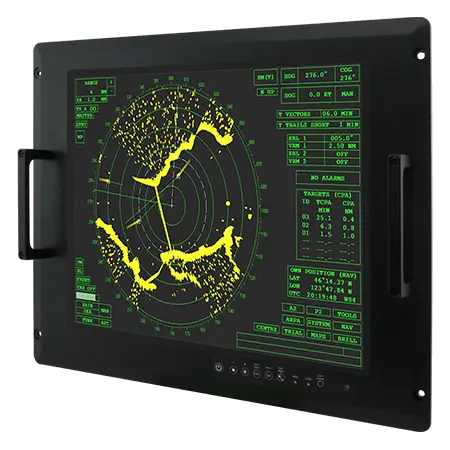

Winmate 21.5" W22L100-MLA3FP PCAP Rack Mount Military Display
WinmateModel W22L100-MLA3FP
Price on request
Send an enquiry or call for the price and availability.
Specifications
- 21.5" PCAP Rack Mount Military Display
- 21.5", 1920 x 1080 resolution
- PCAP multi-touch screen
- Compliant MIL-STD 810G/ MIL-STD 461E
- Rack mount mechanical design, supports VESA mount
- Military-grade power connector (MIL-DTL-38999/1)
- AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
- Convenient on-screen display controls
Display
- Resolution
- 1920x1080
- Contrast Ratio
- 3000:1
- Display Color
- 16.7M Colors
- Size
- 21.5 inches
- Panel Brightness
- 250 nits
- View Angles
- 89,89,89,89
- Touch/glass
- Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional)
Compliance
- MILSTD 461E/F
- RE101 / RE102 CE101 / CE 101 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116
- MILSTD 810F/G
- Vibartion Method 514.5 Humidity Method 507.4 Transit Drop Method516.5
Environment
- Operating Humidity
- 10% - 95% RH
- Storage temperature
- '-10~60°C
- Operating Tempreture
- 0~50°C
Certification
- Certification
- CE, FCC
Mechanical
- Dimension
- 580 x 384 x 71 mm
- Enclosure
- Metal housing with aluminum Bezel
- Mounting
- Rock Mount/ VESA Mount
- Cooling system
- Fanless Design
IO Port
- USB Port
- 1 x USB for Touch
- Video
- 1 x VGA 5 x BNC (R,G,B,H,V) 1 x DVID
Control
- Button
- 7 key: Power Decrease Increase Exit/ Auto Menu Day/ Night Lock/ Unlock
Accessory
- Accessory
- 1 x User Manual(Hardcopy) 1 x Power Cord MILDTL38999/1 1 x VGA Cable 1 x DVI Cable 1 x VGA to 5 BNC Shielding Cable
Power
- Power Rating
- AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional)
