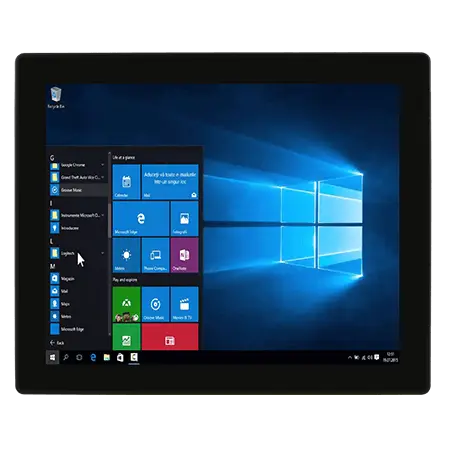

Winmate 21.5" W22IBWS-MHA3 Intel® Atom® E3845 M Series HMI Panel PC

• 21.5" Intel® Atom® E3845 M Series HMI Panel PC
• W22IBWS-MHA3
• Projected Capacitive Multi Touch Screen
• Fanless Design
• Modular design for easy service in the field
• Support wide range 12-24 V DC input
• One Quick & Easy Removable 2.5” SSD Bay Slot

Display

Size

21.5 inches

Touch/glass

Projected Capacitive Multi Touch Screen

Resolution

1920x1080

Panel Brightness

250 nits

Contrast Ratio

3000:1

View Angles

89,89,89,89

System Specification

Processor

Intel® Atom® E3845 (2M Cache, 1.91 GHz)

Memory

2 x SO-DIMM, DDR4 2133 MHz, 4GB 8GB (Optional)

Storage

1 x 2.5" 64GB SSD 2.5" SSD,up to 512GB. (Optional)

Ethernet controller

Intel® Ethernet Controller I211-AT

Security

TPM 1.2

Operating system

Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional)

WLAN

802.11 a/b/g/n/ac (Optional)

BT

BT Support (optional)

Expansion Port

Modular Design for easy service in the field

Mechanical

Dimension

532.6 x 324.1 x 79.2 mm

Cut out

504x304mm

Mounting

Panel mount, VESA Mount

Enclosure

Metal Housing

Cooling system

Fanless design

Environment

Operating humidity

10% to 90% (non-condensing)

Operating tempreture

0~50°C

Storage tempreture

20~60°C

IP rating

Front IP65

Certification

Certification

CE,FCC

IO Port

USB Port

4 x USB3.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

2 x Giga LAN RJ45 Connector

Video

1 x HDMI 1.4 (Optional) 1 x VGA (Optional)

Audio

Line in Line out

Expansion Port

1 x mPCIe slot(for half size Wifi module)

Indicator

1 x LED Indicator for storage

mini Pcle

1 x Mini PCIE (One For WLAN)

Control

Button

1 x Power Button with LED Indicator 1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws Mounting clips

Power

Power rating

12V~24V DC with protection fuse

Adapter

12V 80W
