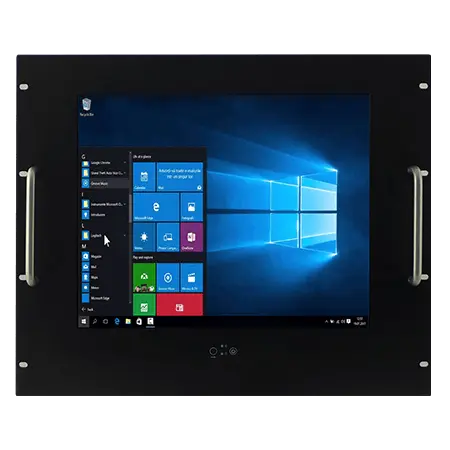

Winmate 18.5" W18IW3S-RKA1 Rack Mount Panel PC

• 18.5" Rack Mount Panel PC
• 18.5” 1920 x 1080 Resolution
• Intel 8th Generation Core i5-8265U processor (turbo to 3.9GHz)
• Flexible storage devices, one 2.5-inch HDD and one SSD socket
• Multiple I/Os, Two Serial Ports and Two USB 3.0 Ports
• 12V DC Power input

Display

Resolution

1920x1080

Contrast Ratio

1000:01:00

Size

18.5 inches

Panel Brightness

350 nits

Display Color

16.7M colors

View Angles

89,89,89,89

Touch/glass

Resistive Touch Screen Protection Glass Without Touch Function (Optional)

System Specification

Processor

Intel® Core™ i5 ­8265U (6M Cache, 1.6GHz up to 3.9 GHz)

Storage

1 x M.2 2242 B­key SSD 64GB M.2 2242 B­key SSD up to 512GB (Optional) M.2 2280 NVME SSD, up to 4TB (Optional)

Security

TPM 2.0

Memory

1 x SO­DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)

Ethernet controller

Intel® Ethernet Controller I210­AT + Intel® Ethernet Connection I219­LM

Operating system

Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional)

Mechanical

Dimensions

483 x 355 x 73 mm

Enclosure

Metal Housing

Mounting

Rack Mount

Cooling system

Fanless Design

Environment

Operating Humidity

10% - 90% (non-condensing)

Storage temperature

­10~60°C

Operating Tempreture

0~50°C

Certification

Certification

CE, FCC

IO Port

USB Port

2 x USB3.0 (Type­A)

Video

1 x HDMI 1.4 (Optional)

Serial Port

1 x RS232/422/485 (Default RS232) 2 x RS232 1 x RS232 (Optional)

Expansion Port

2 x M.2 slot(1 for WiFi, 1 for SSD)

LAN

2 x Giga LAN RJ45 Connector

Brightness Knob

1 x Brightness Adjustment Knob

Control

Button

1 x Power Button 1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws

Power

Power Rating

12V DC (Lockable Power Jack)

Adapter

12V 84W
