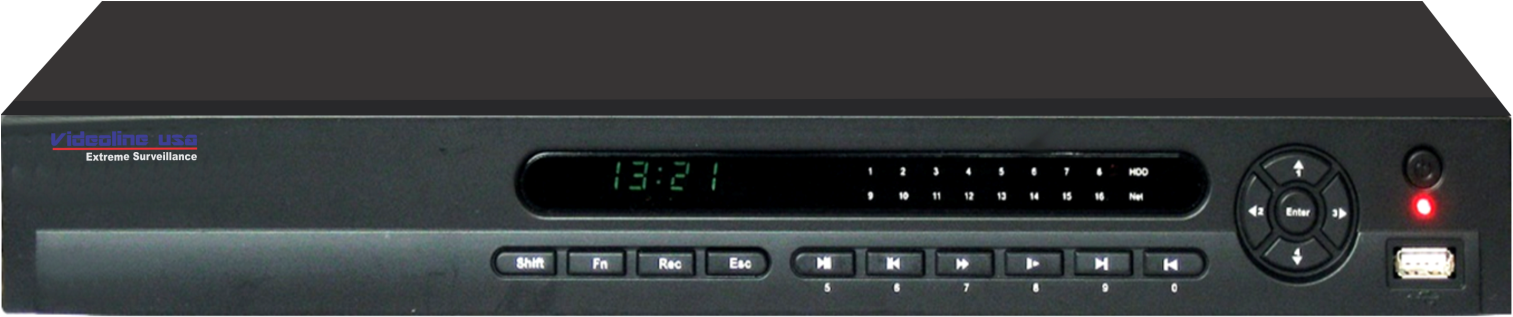

Model |
VH6216K-SAN |
|
|
System |
Main Processor |
High performance Quad-core
embedded processor |
|
Operating System |
Embedded LINUX |
|
|
System Resources |
Pentaplex function:
live, recording, playback, backup & remote access |
|
|
GUI |
Unified PVR front-end
(DVR/HTPC client GUI with EPG) and Add-on API for PVR back-end |
|
|
Control Mode |
Front panel, USB
mouse, IR remote control, Keyboard, Network |
|
|
Video |
IP Camera Input |
8/16 Channel |
|
IP Camera Supported List |
Videoline usa,
Arecont Vision, AXIS, Canon, Dynacolor, Dahua, Hikvision, Panasonic, SAMSUNG,
SANYO, SONY, ONVIF 2.4 |
|
|
Output |
1 HDMI(video &
audio), 1 VGA |
|
|
Display |
Display Split |
1/4/8/9/16 |
|
Resolution |
3840x2160, 1920×1080,
1280×1024, 1280×720, 1024×768 |
|
|
Tour Display |
Support |
|
|
Privacy Masking |
4 self-defined
four-sided zones for privacy masking for each camera |
|
|
OSD |
Camera title, time,
video loss, camera lock, motion detection, recording |
|
|
Recording |
Compression |
H.265/H.264/MJPEG/MPEG4 |
|
Recording Resolution |
12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/
720P/ D1, etc. |
|
|
Max Recording Speed |
320Mbps |
|
|
Recording Bit Rate |
16kbps~20Mbps for per
channel |
|
|
Recording Quality |
CBR, VBR(1~6 level,
level 6 is the best) |
|
|
Recording Mode |
Manual,
Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera
blank, Video loss), Alarm), Stop |
|
|
Recording Priority |
Manual >Alarm
>MD >Regular |
|
|
Recording Interval |
1~120 min (default:
60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
|
Video Detection & Alarm |
Trigger Events |
Recording, PTZ, Tour,
Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Motion Detection |
Motion Detection, MD
Zones: 396 (22 × 18), Video Loss and Tampering |
|
|
Video Loss & Camera Blank |
Support |
|
|
Alarm Input |
Motion Detection, MD
Zones: 396 (22 × 18), Video Loss and Tampering |
|
|
Relay Output |
2 Channel, NO/NC
Programmable, Green Terminal Interface |
|
|
Playback & Backup |
Playback Channel |
1/4/9/16 |
|
Search Mode |
Time /Date, Alarm, MD
and Exact Search (accurate to second) |
|
|
Playback Function |
Play, Pause, Stop,
Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous
Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
|
Backup Mode |
USB Device/Network |
|
|
Network |
Ethernet |
RJ-45 port
(10/100M/1000M) |
|
Network Function |
HTTP, TCP/IP, UPNP,
RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, P2P, Alarm
Server, IP Search(Support Videoline usa IP camera, DVR, NVS etc) |
|
|
Max Remote Users |
128 Users
simultaneously |
|
|
Remote Operation |
Monitor, PTZ control,
Playback, System setting, File download, Log information |
|
|
Supported Software |
Linovision, Unisight,
CP-KVMS, vOptimus Pro, KVMS Pro, PSS, DMSS, iVMS, etc. |
|
|
Smart Phone |
iPhone, iPad, Android |
|
|
Storage |
Hard Disk |
2 SATA III Ports |
|
Auxiliary Interface |
USB Interface |
2 ports (1 Rear), USB3.0 |
|
RS232 |
1 Port for Keyboard,
PC communication |
|
|
RS485 |
1 Port for PTZ
control |
|
|
Environmental |
Power Supply |
DC12V |
|
Power Consumption |
10W(without HDD) |
|
|
Working Environment |
-10 ~+55°C / 10~90%RH
/ 86~106kpa |
|
|
Dimension |
1U, 375mm × 285mm ×
50mm |
|
|
Weight |
2.3KG(without HDD) |
|
