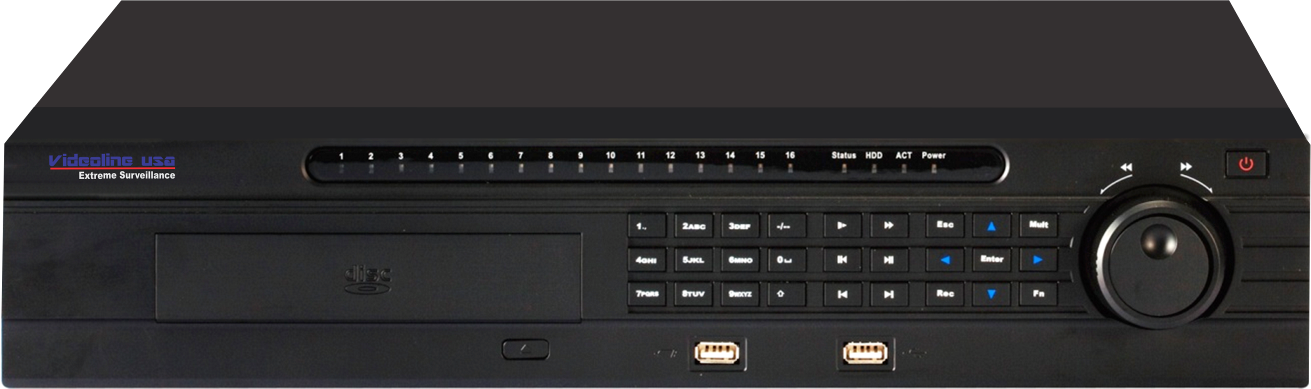

16 Channel 4K Network Video Recorder VH6816-SAN

Features

Note

Up to 8/16 channel with real-time live views

Note

H.265/H.264/MJPEG dual codec decoding

Note

Full HD 1080p resolution

Note

Up to 12MP preview & recording

Note

2 HDMI / VGA simultaneous video output

Note

16 channel synchronous real-time playback, GRID interface

Note

Support Multi-brand network cameras

Note

ONVIF Version 2.4 conformance

Note

3D intelligent positioning with PTZ camera

Note

Support 8 SATA HDDs, 1 eSATA, 4 USB2.0

Multiple network monitoring

Web viewer, CMS & Mobile

System

· Main Processor · High performance Dual-core embedded microprocessor

Operating System

Embedded LINUX

System Resources

Pentaplex function: live, recording, playback, backup & remote access

GUI

Unified PVR frontend (DVR/HTPC client GUI with EPG) and Add-ons API for PVR backend

Control Mode

Front panel, USB mouse, IR remote control, Keyboard, Network

Video

· IP Camera Input · 16 Channel

IP Camera Support

Videoline usa, Arecont Vision, AXIS, Canon, Dynacolor, Dahua, Hikvision Panasonic, SAMSUNG, SANYO, SONY, ONVIF 2.1

Output

2 HDMI(video & audio), 1 VGA

Display

· Display Split · 1/4/8/9/16

Resolution

3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

Tour Display

Support

Privacy Masking

4 self-defined four-sided zones for privacy masking for each camera

OSD

Camera title, time, video loss, camera lock, motion detection, recording

Note

Recording · Compression · H.265 / H.264 / MPEG4

Recording Resolution

12MP(4K), 5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)

Max Recording Speed

192Mbps

Recording Bit Rate

1~ 20Mbps

Recording Quality

CBR, VBR(1~6 level, level 6 is the best)

Recording Mode

Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

Recording Priority

Manual >Alarm >MD >Regular

Recording Interval

1~120 min (default: 60 min) Pre-record: 1~30 sec, Post-record: 10~300 sec

Note

Video Detection & Alarm · Trigger Events · Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Motion Detection

Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)

Video Loss & Camera Blank

Support

Alarm Input

16 channel

Relay Output

6 channel

Note

Playback & Backup · Playback Channel · 1/2/4/8/16

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next le, Previous le, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device / eSATA Device / Internal SATA burner/ Network

Network

· Ethernet · 2 RJ-45 port (10/100M/1000M)

Network Function

HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Videoline usa IP camera, DVR, NVS etc)

Max Remote Users

128 Users simultaneously

Remote Operation

Monitor, PTZ control, Playback, System setting, File download, Log information

Supported Software

Linovision, Unisight, CP-KVMS, vOptimus Pro, KVMS Pro, PSS, DMSS, iVMS, etc.

Smart Phone

iPhone, iPad, Android, Windows Phone

Note

Hard Disk · Hard Disk · 8 SATA ports (8HDDs or 6HDDs+1CD/DVD-RW)

External HDD

1 eSATA port (Max 4 SATA HDDs)

Space Occupation

Max 3.6GB/H per channel

HDD Management

HDD Group, HDD hibernation technology, HDD faulty alarm & Raid (Redundancy)

Note

Auxiliary Interface · USB Interface · 4 ports (2 Rear), USB2.0/3.0

RS232

1 Port for Keyboard, PC communication

RS485

1 Port for PTZ control

Environmental

· Power Supply · AC 100~240V, 50/60 Hz

Power Consumption

40W(without HDD)

Working Environment

10 ~+55°C / 10~90%RH / 86~106kpa

Dimension

2U, 440mm × 460mm × 89mm

Weight

6KG(without HDD)
