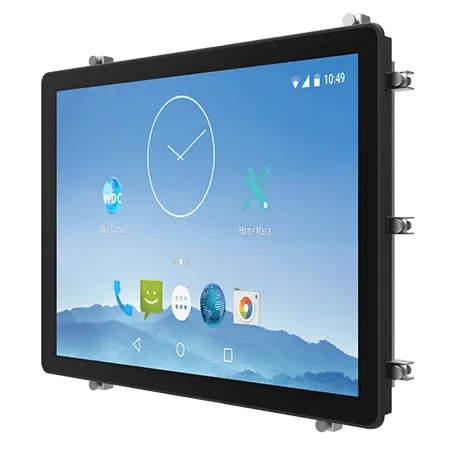

Winmate 15.6" W15IQ3S-EHA4 E Series HMI Panel PC

• W15IQ3S-EHA4
• 15.6" E Series HMI Panel PC
• 15.6” 1920 x 1080 Resolution with Projected Capacitive Multi-Touch (P-CAP)
• ARM Dual-core A72 up to 2.0GHz + Quad-core A53 up to 1.5GHz
• Fanless cooling system and ultra-low power consumption
• Front IP65 Water and Dust Proof
• 1 x USB 3.0, 1 x USB 2.0; 1 x RS232/422/485; 1 x RJ45; 1 x Micro SD Slot; 1 x Micro HDMI (Optional); 1 x USB OTG
• Supports PoE function

Display

Size

15.6 inches

Touch/glass

Projected Capacitive Multi Touch Screen

Resolution

1920x1080

Panel Brightness

300 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

System Specification

Processor

Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU

Memory

3GB LPDDR4

Storage

32GB eMMC

Operating system

Android 9.0

WLAN

Wi-Fi a/b/g/n/ac 802.11 a/b/g/n/ac (Optional)

BT

BT Support (optional)

WWAN

4G/LTE (Optional)

Mechanical

Dimension

387.6 x 259.7 x 57.5 mm

Cut out

371x224mm

Mounting

Panel mount, VESA Mount

Enclosure

Metal Housing

Cooling system

Fanless design

Environment

Operating humidity

10% to 90% (non-condensing)

Operating tempreture

0~50°C

Storage tempreture

20~60°C

IP rating

Front IP65

Certification

Certification

CE,FCC

IO Port

USB Port

1 x USB-C 2 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

1 x LAN RJ45 Connector with PoE(PD, 802.11at)

SD Card Slot

1 x Micro SD card slot

Expansion Port

2 x M.2 slot(1 for WWAN)

Accessory

Accessory

100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws Mounting clips

Power

Power rating

12V DC

Adapter

12V 50W
