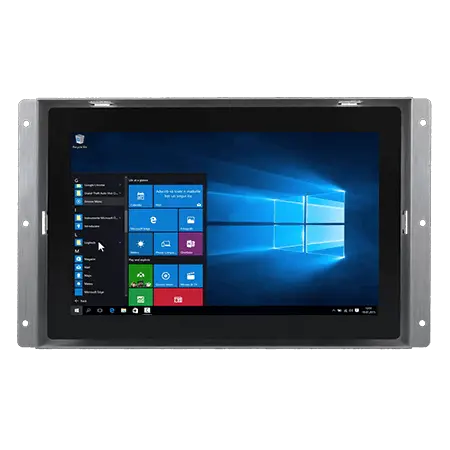

Winmate 15" R15IB7T-POC3 Intel® Celeron® N2930 PO Series HMI Panel PC

• 15" Intel® Celeron® N2930 PO Series HMI Panel PC
• 15” 1024 x 768 Resolution
• Intel Celeron Bay Trial-M N2930 1.83GHz
• Flexible storage devices, one 2.5-inch HDD and one SSD
• Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports
• 12 V DC power input
• DP Support 4096 x 2304 @ 60 Hz
• HDMI (Optional) Support 4096 x 2304 @ 24 Hz

Display

Size

15.0 Inches

Touch/Glass

Projected Capacitive Multi Touch Screen

Resolution

1024x768

Panel Brightness

300 nits

Contrast Ratio

2000:1

View Angles

88,88,88,88

Sytem Specification

Processor

Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)

Memory

1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional)

Storage

1 x mSATA SSD 64GB mSATA SSD up to 512GB (Optional) 1 x SATA II for 2.5" HDD (Optional)

Ethernet controller

2 x Intel® Ethernet Controller I210-AT

Security

TPM 1.2

Operating system

Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional)

WLAN

802.11 a/b/g/n/ac (Optional)

BT

BT Support (Optional)

Mechanical

Dimension

360 x 272 x 72 mm

Mounting

Open Frame panel mount VESA Mount

Enclosure

Metal Housing

Cooling system

Fanless design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Tempreture

0~50°C

Storage Tempreture

10~60°C

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB3.0 (Type-A) 1 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232) 2 x RS232 1 x RS232 (Optional)

LAN

2 x Giga LAN RJ45 Connector

Video

1 x VGA

Audio

Mic in Line in Line out

Expansion Port

2 x mPCIe slot

Indicator

1 x LED Indicator for power 1 x LED Indicator for storage

Brighness Knob

1 x Brightness Adjustment Knob

PS/2

2 x PS/2

mini Pcle

1 x Mini PCIE(For WLAN)

Control

Button

1 x Power Button 1 x Reset Button

Accessory

Accessory

100~240V AC to DC Adapter Power Cord Driver CD & Manual VESA screws

Power

Adapter

12V 84W

Power rating

12V DC
