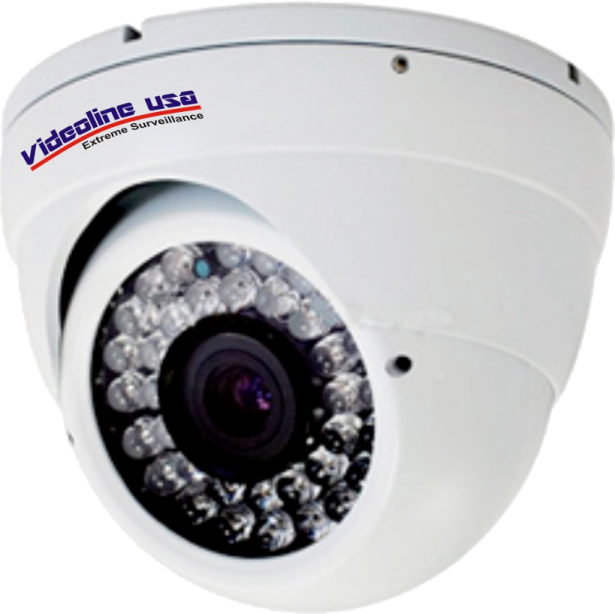

High Definition CVI Vandal Resistant IR Camera HA285-IRD

High Definition CVI Vandal Resistant IR Camera Model: HA285-IRD Features: - Day/Night Vandal Proof IR Dome Camera - 8 Megapixel CMOS - Smart IR LEDs, 30M IR Distance - Built-in IR Cut filter - Weather Resistance: IP66 - Digital Noise Reduction (DNR) - Auto White Balance (AWB) - Lens: 3.6,6,8 & 12 mm Fixed Lens

Operational



Video Standard

NTSC / PAL



Image Sensor

8 Megapixel CMOS



Effective Pixels

3840(H)x2160(V)



Illumination

0 LUX, operates in total darkness

Video Output

CVI BNC, CVBS terminal



Lens Mount

Fixed

Lens

3.6mm Fixed (6, 8 & 12mm Optional)

Sync System

12 VDC: Internal

S/N Ratio

More than 52 dB (AGC off)

Electronic Shutter

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s



Gain Control

Automatic

White Balance

Automatic

BLC

Automatic



IR LED

Smart IR LEDs



IR Distance

30 Meter



DNR

Automatic



WDR

Digital / Automatic



Electrical



Input Voltage

12V DC



Input Range

±25%



Surge Suppression

1.5 KW transient



Power Consumption

DC12V±1V(Max 4W, Max 7W when IR cut switch)



Mechanical



Dimensions

Φ93.4mm×79.7mm



Weight

350g



Construction

Brushed and anodized aluminum



Mounting Plate

Connection to 4S junction box



Connector

Video Output: BNC Connector

Power Input: Tinned Leads



Environmental



Temperature

-30°C~+60°C

Relative Humidity

0% to 85%, non-condensing

Rating

IP66

Regulatory

Emissions

FCC: Part 15, Class B

CE: EN 55013

Immunity

CE: EN50130-4



Safety

EU: 73/23/EEC LVD
