BRING CONVENIENCE AND SECURITY TO YOUR LIFE

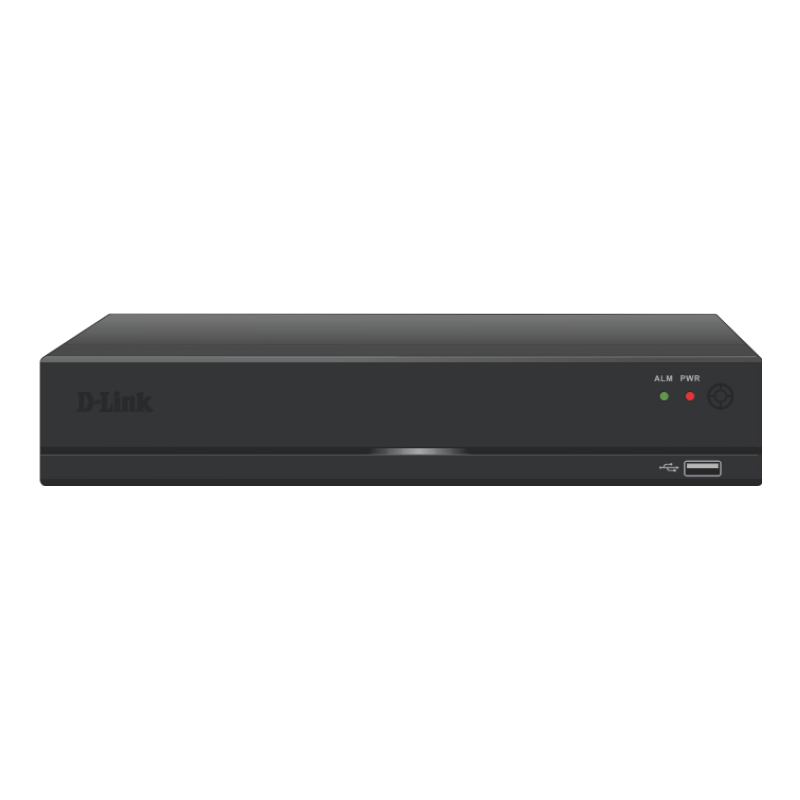

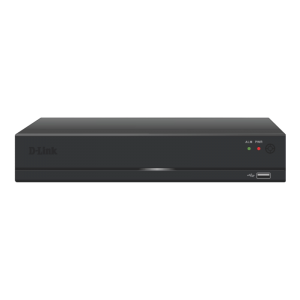

DNR-F5104-M5 4CH, 1 SATA H.265+ NVR

4CH, 1 SATA H.265+ NVR Model: DNR-F5104-M5 - 4CH, 1 SATA NVR - Support up to 5MP IPC - Support H.265+/H.265/H.264+/H.264 - Support smart playback & analytics - Support 3G/4G Wi-Fi Connectivity - Support Google Drive & Dropbox Cloud storage - Support Onvif 2.6

Video & Audio Input
IP Video Input 4ch
Audio Input N/A
Video & Audio Output
HDMI 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
VGA 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
Audio Output N/A
Recording
Compression H.265+/H.265 /H.264+/H.264
Resolution 5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF
Playback & Backup
Playback Mode Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback
Decoding Capability 4CH@1080P(25fps)
Backup Mode USB Device/Network
Advanced Features
Smart Detection Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing
Smart Playback Line Crossing/Area Intrusion /Motion Detection
Cloud Storage Support
Cloud Upgrade Support
Network
Incoming Bandwidth 30Mbps
Outgoing Bandwidth 20Mbps
Ethernet 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
Network Compatibility HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6
Smart Phone IOS (iPhone, iPad), Android (Phone, Pad)
Hard Disk
SATA 1 SATA interface
Capacity Up to 8TB capacity for each HDD
External Interface
USB Interface Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0
General
Power Supply DC12V/1.5A
Power Consumption ≤10W (without HDD)
Working Environment -10°C~+55°C / 10%~90%RH
Dimension (W×D×H) 250x230x45mm
Weight ≤1.5Kg
Certification CE, BIS
System Management
Mobile Software D-Link Smart CCTV App
Desktop Software DSVS (D-Link Smart Video Surveillance)
System Requirement for Web Interface IE

  • - SKU: DNR-F5104-M5 4CH, 1 SATA H.265+ NVR
  • - Weight: 1.5 kg
  • - Brand: Dlink
Categories :
Video & Audio Input
IP Video Input 4ch
Audio Input N/A
Video & Audio Output
HDMI 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
VGA 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
Audio Output N/A
Recording
Compression H.265+/H.265 /H.264+/H.264
Resolution 5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF
Playback & Backup
Playback Mode Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback
Decoding Capability 4CH@1080P(25fps)
Backup Mode USB Device/Network
Advanced Features
Smart Detection Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing
Smart Playback Line Crossing/Area Intrusion /Motion Detection
Cloud Storage Support
Cloud Upgrade Support
Network
Incoming Bandwidth 30Mbps
Outgoing Bandwidth 20Mbps
Ethernet 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
Network Compatibility HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6
Smart Phone IOS (iPhone, iPad), Android (Phone, Pad)
Hard Disk
SATA 1 SATA interface
Capacity Up to 8TB capacity for each HDD
External Interface
USB Interface Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0
General
Power Supply DC12V/1.5A
Power Consumption ≤10W (without HDD)
Working Environment -10°C~+55°C / 10%~90%RH
Dimension (W×D×H) 250x230x45mm
Weight ≤1.5Kg
Certification CE, BIS
System Management
Mobile Software D-Link Smart CCTV App
Desktop Software DSVS (D-Link Smart Video Surveillance)
System Requirement for Web Interface IE
