BRING CONVENIENCE AND SECURITY TO YOUR LIFE

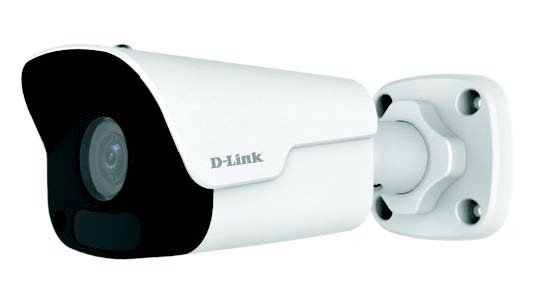

4MP WDR NETWORK IR MINI BULLET CAMERA DCS-F5704E

4MP WDR NETWORK IR MINI BULLET CAMERA Model: DCS-F5704E OPTICS • Day/night functionality • Smart IR , up to 30 m (98 ft) IR distance • Optical glass window with higher light transmittance • IR anti-reflection window to increase the infrared transmittance • 2D/3D DNR (Digital Noise Reduction) COMPRESSION • Ultra 265,H.265, H.264, MJPEG • Embedded smart algorithm • Triple streams • 9:16 corridor format NETWORK • ONVIF Conformance STRUCTURE • Wide temperature range: -35°C to 60°C (-31°F to 140°F) • Wide voltage range of ±25% • IP67 • 3-Axis

Camera

Sensor

1/3", progressive scan,4.0 megapixel, CMOS

Lens

3.6mm@F2.0

6.0mm@F2.0

DORI Distance

Lens

Detect(m)





Recognize(m)

Identify(m)

3.6mm

81





16.2

8.1

Angle of View(H)

86.4°

49.9°

Angle of View (V)

43.6°

27°

Angle of View (O)

112.3°

61.4°

Adjustment angle

Pan: 0°~360°

Tilt: 0°~90°

Rotate: 0°~360°

Shutter

Auto/Manual, 1~1/100000 s

Minimum Illumination

Colour: 0.03 Lux (F2.0, AGC ON) 0 Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 30m (98 ft) IR range

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265,H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile



Frame Rate

Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440):

Max. 25 fps, 3MP (2048×1520): Max. 30 fps;

Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max.30fps

9:16 Corridor Mode

Supported

HLC

Supported

BLC

Supported

OSD

Up to 8 OSDs



  • - SKU: 4MP WDR NETWORK IR MINI BULLET CAMERA DCS-F5704E
  • - Weight: 0
  • - Brand: Dlink
Categories :

Camera

Sensor

1/3", progressive scan,4.0 megapixel, CMOS

Lens

3.6mm@F2.0

6.0mm@F2.0

DORI Distance

Lens

Detect(m)





Recognize(m)

Identify(m)

3.6mm

81





16.2

8.1

Angle of View(H)

86.4°

49.9°

Angle of View (V)

43.6°

27°

Angle of View (O)

112.3°

61.4°

Adjustment angle

Pan: 0°~360°

Tilt: 0°~90°

Rotate: 0°~360°

Shutter

Auto/Manual, 1~1/100000 s

Minimum Illumination

Colour: 0.03 Lux (F2.0, AGC ON) 0 Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 30m (98 ft) IR range

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265,H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile



Frame Rate

Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440):

Max. 25 fps, 3MP (2048×1520): Max. 30 fps;

Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max.30fps

9:16 Corridor Mode

Supported

HLC

Supported

BLC

Supported

OSD

Up to 8 OSDs
